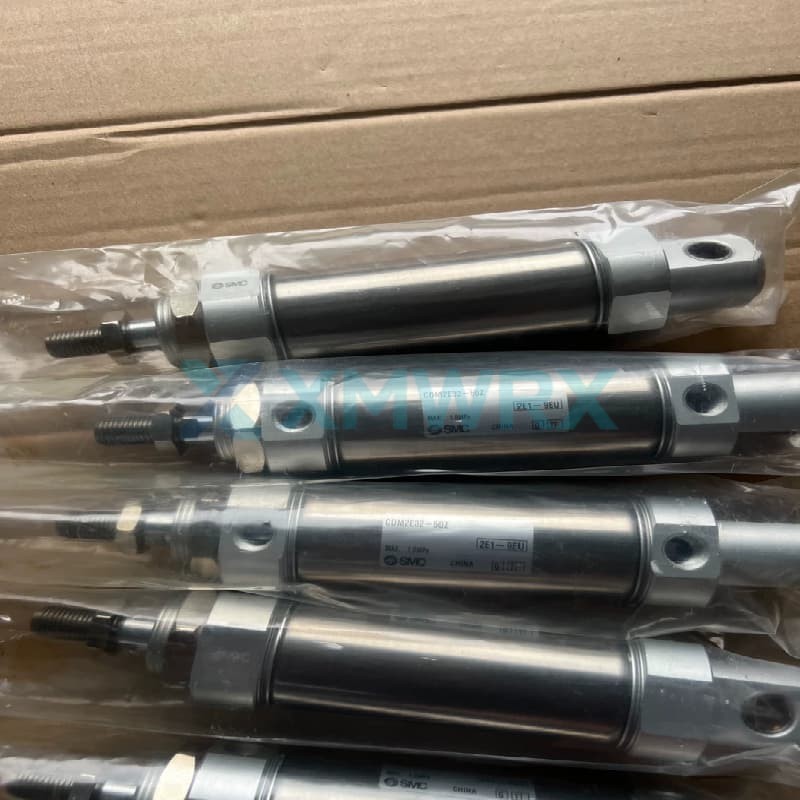

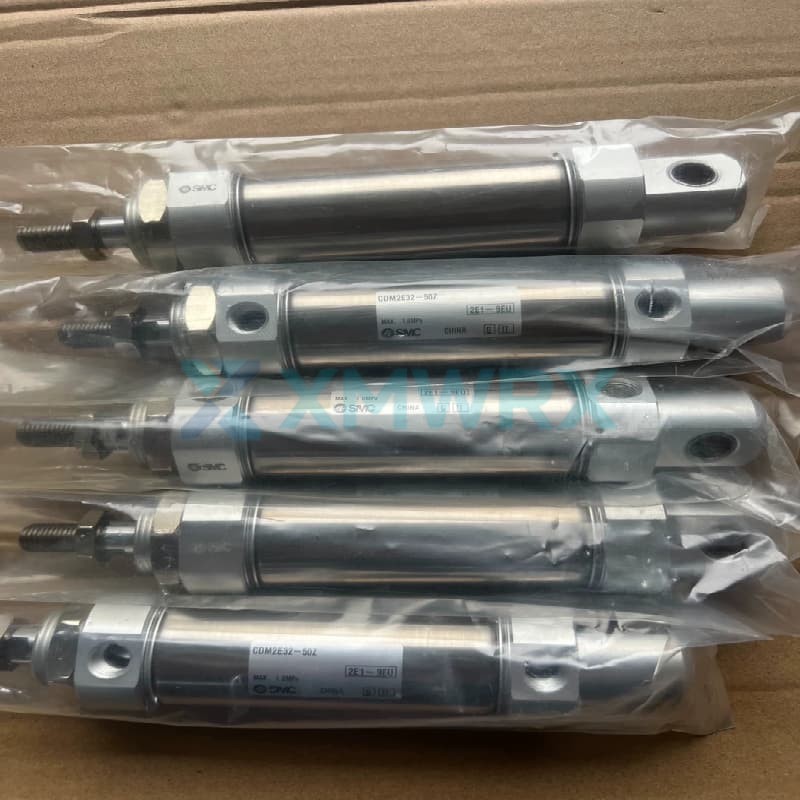

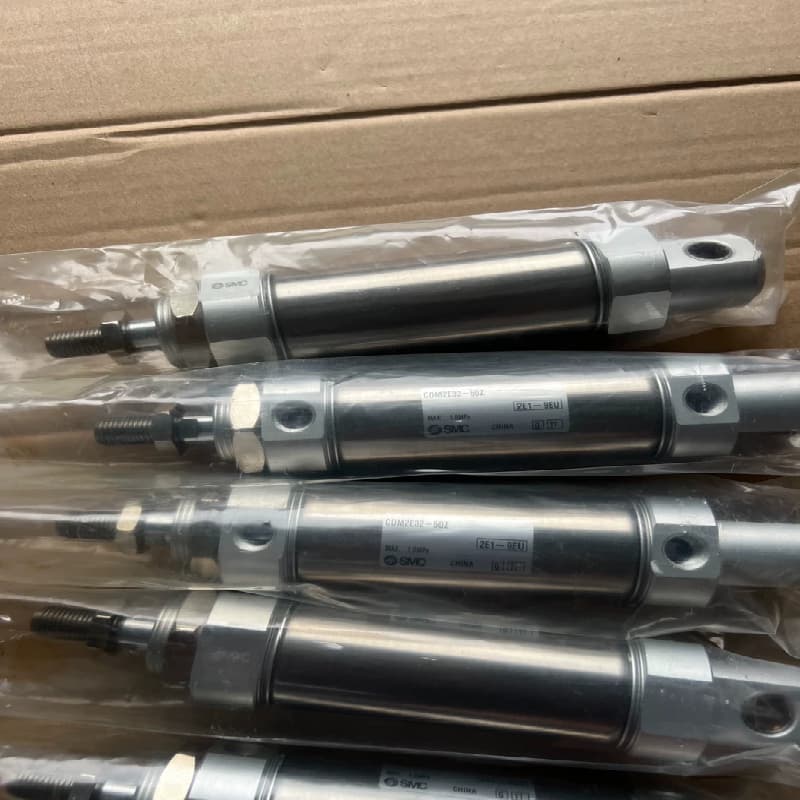

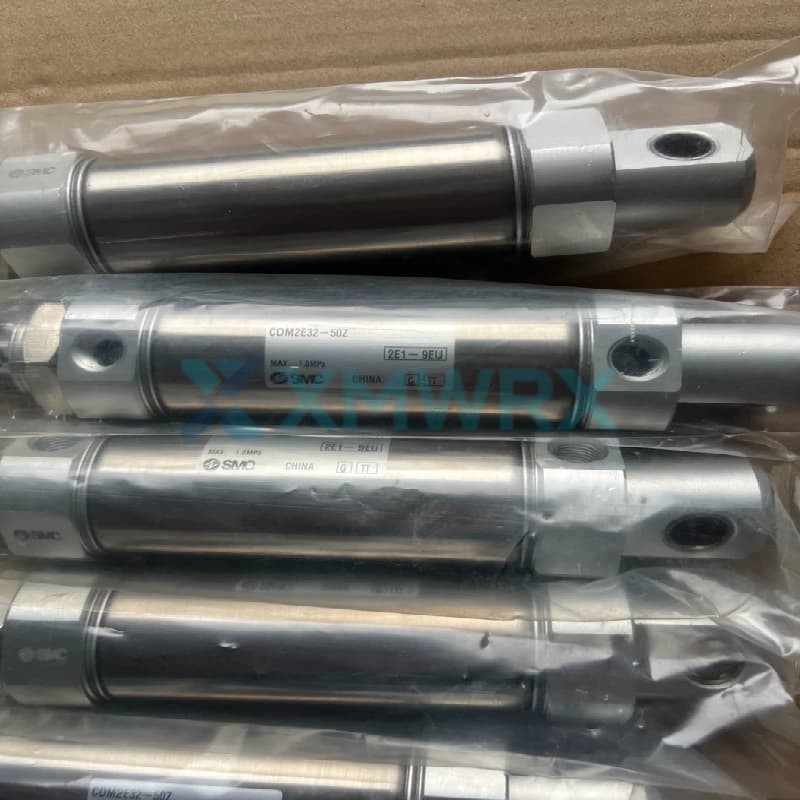

The CDM2E32-50Z is an aluminum alloy miniature cylinder from SMC's CM2/CDM2-Z series. It has a 32mm bore, 50mm stroke, and a single-rod double-acting design.
It features an "integral clevis mounting" configuration ("E" in the model name represents integral clevis mounting), an internal magnetic ring for position detection with a magnetic switch, and an external threaded rod (M10×1.25). The piping diameter is Rc 1/8, and the cylinder is made of stainless steel. It boasts a compact and lightweight design.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Double-acting pneumatic drive: Compressed air drives the piston in both directions, achieving push-pull function.
- ✓ Built-in magnetic ring: Can be used with an external magnetic switch for piston position detection and automated control.
- ✓ Standard rod end internal thread: The rod end uses a standardized internal thread for easy direct connection to the load.
- ✓ Compact and lightweight design: Aluminum alloy construction combined with a stainless steel cylinder results in a compact structure suitable for use in confined spaces.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
CDM2E32-50Z |
| Cylinder Bore |
32 mm |
| Stroke |
50 mm |
| Actuation type |
Double-acting, single rod |
| Operating pressure |
0.05 - 1.0 MPa |
| Guaranteed pressure resistance |
1.5 MPa |
| Ambient temperature |
-10℃ ~ 70℃ (standard type) |
| Operating piston speed |
50 ~ 750 mm/s |
| Cushioning method |
Rubber cushion (standard) |
| Hose diameter |
Rc 1/8 |
| Mounting type |
Basic type (with bosses on both sides) |
| Rod end thread |
M10×1.25 (external thread) |
| Cylinder barrel material |
Stainless steel |
| Cylinder head material |
Aluminum alloy |
| Built magnetic ring |
Standard configuration |
Frequently Asked Questions
Q: What kind of equipment is the CDM2E32-50Z suitable for?
A: This cylinder is suitable for installation in compact equipment requiring a swing connection, such as automated assembly machinery, light-duty handling equipment, small packaging machinery, and semiconductor manufacturing equipment. Its integrated earring mounting design is particularly suitable for applications requiring the cylinder to perform swinging motions.
Q: Can this cylinder be used with a magnetic switch?
A: Yes. The CDM2E32-50Z has a built-in magnetic ring and can be paired with small magnetic switches such as the SMC D-M9 series for piston position detection. This series of magnetic switches offers convenient position adjustment and supports fine adjustment..
Q: What are the characteristics of the "integrated earring basic type" mounting configuration of the CDM2E32-50Z? How do I select a swing base?
A: The "E" in the model number indicates that the mounting configuration is "integrated earring basic type," meaning the cylinder body has a built-in earring mounting structure and can be directly connected to a swing base. The SMC CM2-Z series features a swing base specifically designed for single-ear loop and trunnion types, and a model with integrated mounting hardware is available, eliminating the need to order cylinders and mounting hardware separately, allowing for a one-stop solution.
