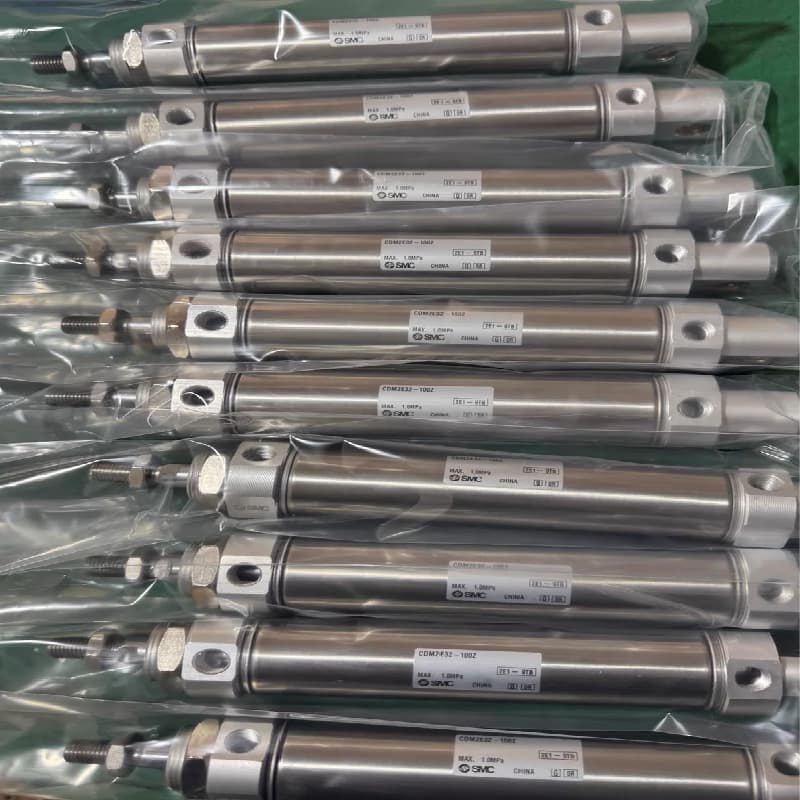

The CDM2E32-100Z is a miniature aluminum alloy cylinder from the SMC CM2-Z series. It has a 32mm bore, 100mm stroke, and a single-lever double-acting design.
Its mounting configuration is the "integrated earring basic type" (model "E" indicates integrated earring mounting). It features a compact and lightweight structure and an internal magnetic ring for magnetic switching. This series is known for its high cost-effectiveness and diverse mounting options, making it suitable for various automation equipment.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Double-acting pneumatic drive: Compressed air drives the piston in both directions, achieving push-pull function.
- ✓ Built-in magnetic ring: Can be used with an external magnetic switch for piston position detection and automated control.
- ✓ Standard rod end internal thread: The rod end uses a standardized internal thread for easy direct connection to the load.
- ✓ Compact and lightweight design: Aluminum alloy construction combined with a stainless steel cylinder results in a compact structure suitable for use in confined spaces.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
CDM2E32-100Z |
| Cylinder Bore |
32 mm |
| Stroke |
100 mm |
| Actuation type |
Double-acting, single rod |
| Operating pressure |
0.05 - 1.0 MPa |
| Guaranteed pressure resistance |
1.5 MPa |
| Ambient temperature |
-10℃ ~ 70℃ (standard type) |
| Operating piston speed |
50 ~ 750 mm/s |
| Cushioning method |
Rubber cushion (standard) |
| Hose diameter |
Rc 1/8 |
| Mounting type |
Basic type (with bosses on both sides) |
| Rod end thread |
M10×1.25 (external thread) |
| Cylinder barrel material |
Stainless steel |
| Cylinder head material |
Aluminum alloy |
| Built magnetic ring |
Standard configuration |
Frequently Asked Questions
Q: What kind of equipment is the CDM2E32-100Z suitable for?
A: This cylinder is suitable for installation in space-constrained equipment requiring a swing connection and a long stroke, such as automated assembly machinery, light-duty handling equipment, small packaging machinery, and semiconductor manufacturing equipment. Its integrated earring mounting design is particularly suitable for applications requiring swinging motion. Due to its long stroke (100mm), it is suitable for applications requiring medium push-pull distances.
Q: Can this cylinder be used with a magnetic switch?
A: Yes. The CDM2E32-100Z has a built-in magnetic ring and can be paired with small magnetic switches such as the SMC D-M9 series for piston position detection. These magnetic switches offer convenient position adjustment, support fine adjustment, and have a transparent switch bracket for easy observation of the switch status.
Q: What are the characteristics of the "integrated earring basic type" mounting configuration of the CDM2E32-100Z? How to select mounting accessories?
A: The "E" in the model number indicates that the installation type is "earring integrated basic type," meaning the cylinder body has an earring-type mounting structure that can be directly connected to the swing base. The SMC CM2-Z series has swing bases specifically designed for single earring and trunnion types, and offers models with integrated mounting parts, eliminating the need to order the cylinder and mounting parts separately, saving the trouble of ordering them separately.
