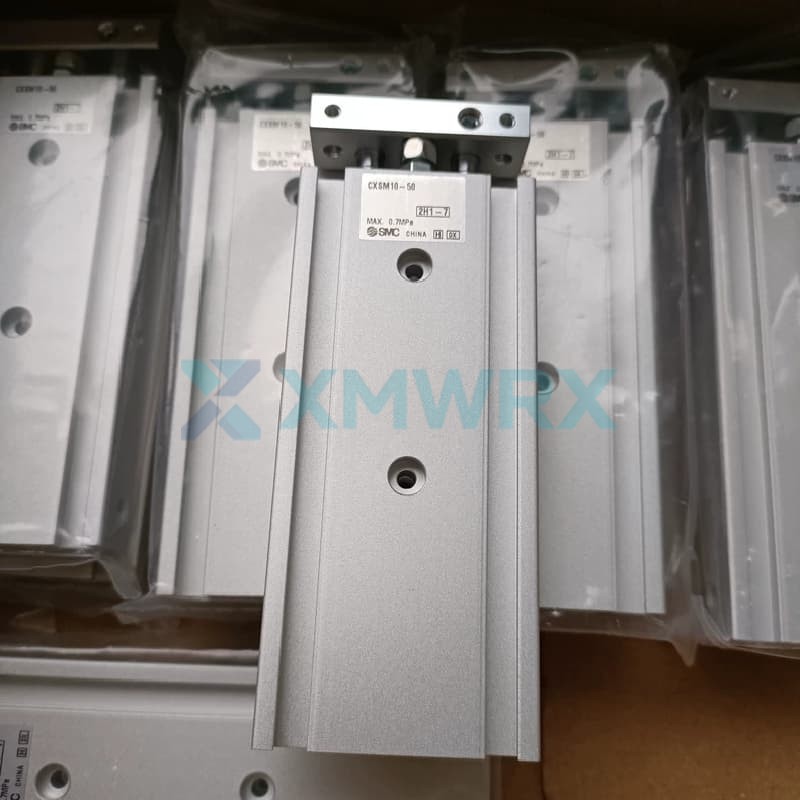

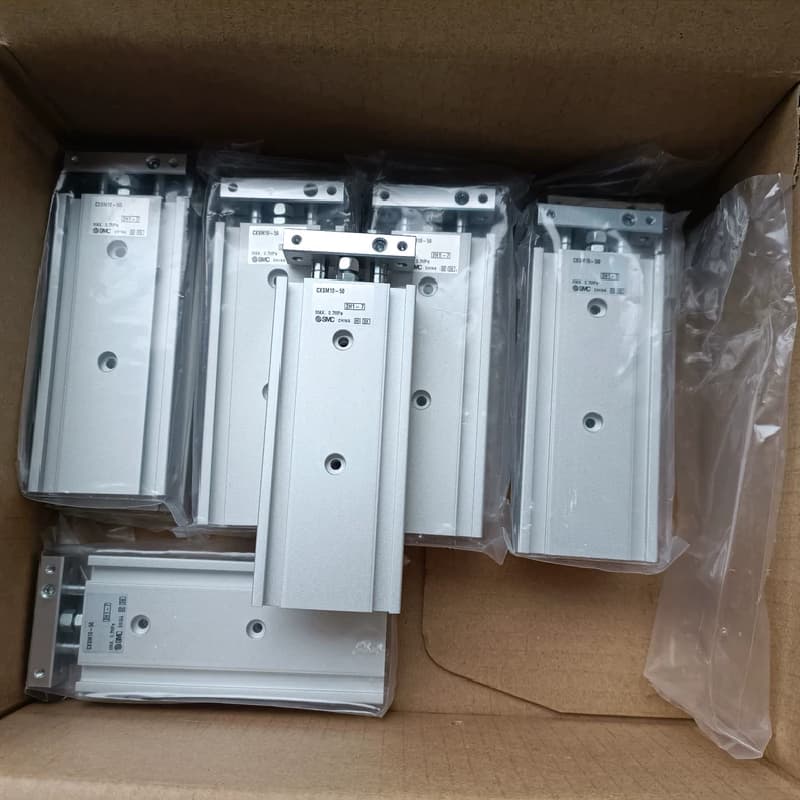

The CXSM10-50 is a double-rod cylinder with a guide rod in the SMC CXS series. It has a 10mm bore and a 50mm stroke.
Utilizing sliding bearings, it offers excellent torsional precision, making it ideal for applications requiring accurate positioning. This compact cylinder supports installation from three directions and comes standard with a magnetic switch mounting slot and a buffer device.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ High torsional precision: Utilizing a double-rod and guide rod structure, it effectively prevents piston rod rotation, making it suitable for applications requiring precise positioning.
- ✓ Compact design: While ensuring performance, its compact size saves installation space and supports multi-directional mounting.
- ✓ Flexible installation and monitoring: The working part can be mounted from three directions, and an internal magnetic ring facilitates the installation of external magnetic switches for position detection.
- ✓ Various customization options: Offers various customized specifications, such as low-speed, heat-resistant, and different bearing types, to adapt to different application environments.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
CXSM10-50 |
| Cylinder Bore |
10 mm |
| Stroke |
50 mm |
| Double rod type |
Sliding bearing type |
| Actuation method |
Double-acting |
| Operating pressure |
0.1 - 0.7 MPa |
| Maximum operating pressure |
0.7 MPa |
| Connection port diameter |
M5 x 0.8 mm |
| Cushioning type |
Rubber cushioning (pad cushioning) |
| Operating temperature |
-10 to +60°C |
Frequently Asked Questions
Q: What are the main applications of the CXSM10-50?
A: It is designed specifically for pick and place applications and light-load material handling. With its high torsional accuracy and compact structure, it is ideal for automated equipment requiring precise linear motion, such as small assembly lines and inspection equipment.
Q: What is the theoretical output force of the CXSM10-50?
A: Taking a working pressure of 0.5 MPa as an example, its theoretical output force is 78.5 N when extended and 50.0 N when retracted. Note that these are theoretical values; actual applications require consideration of factors such as load rate.
Q: Can sensors be installed on the CXSM10-50?
A: Yes. This cylinder has a built-in magnetic ring and a switch mounting slot, making it compatible with various SMC automatic switches (such as D-M9N, D-M9P, D-M9B, etc.).
Why Partner With Us?
100% Original
Genuine spare parts through rigorous supply chain control..
Quick Shipping
Expedited delivery through our global logistics network.
24/7 Support
Uninterrupted technical assistance for system installation.
Large Stock
Immediate availability from our massive control systems inventory
