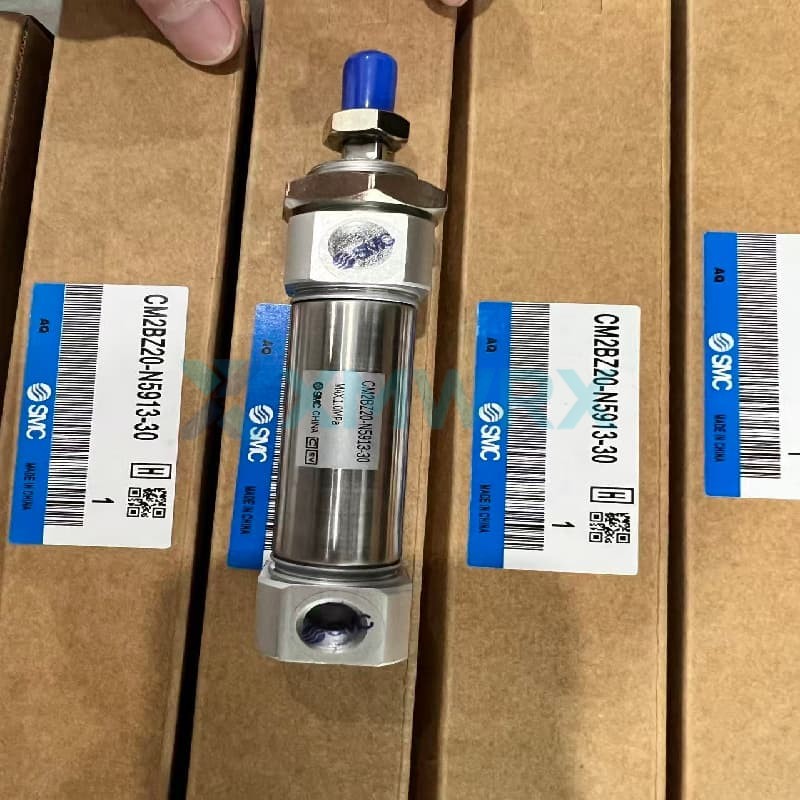

The CM2BZ20-N5913-30 is a stainless steel miniature cylinder from SMC's CM2 series, with a 20mm bore and 30mm stroke.
It features a single-rod double-acting design, using compressed air to drive the piston in both directions. This series of cylinders has a compact body and supports the installation of magnetic switches, facilitating automated position detection and control.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Dual-acting drive: Utilizes pneumatic pressure to extend and retract the piston, providing both pushing and pulling forces.
- ✓ Compact design: The cylinder is round, making it a mini-cylinder suitable for use in equipment with limited installation space.
- ✓ Status detection support: The body design allows for the installation of a magnetic switch to detect piston position and achieve automated control.
- ✓ Multiple mounting options: Supports various bracket mounting methods (such as basic type, trunnion type, etc.) for easy fixation to different mechanical structures.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
CM2BZ20-N5913-30 |
| Cylinder bore |
20 mm
|
| Stroke |
30 mm (Key parameter for this model) |
| Operating Fluid |
Air |
| Actuation method |
Single-lever double-acting |
| Operating pressure range |
0.05 ~ 1.0 MPa |
| Ambient and Fluid Temperature |
-10℃ ~ 70℃ (estimated) |
| Buffer type |
Rubber buffer |
| Piping diameter |
Rc 1/8 |
Frequently Asked Questions
Q: What kind of automated equipment is this cylinder suitable for?
A: It belongs to the CM2 series standard cylinder and has a wide range of applications. Common applications include automated actions such as gripping, positioning, clamping, and pushing. It can be used in various occasions requiring linear reciprocating motion, such as packaging machinery, electronic equipment assembly lines, and food processing equipment.
Q: What action requirements can a 30mm stroke meet?
A: 30mm is a medium stroke, suitable for push-pull, lifting, or clamping actions requiring short strokes. For example, for short-distance positioning or blocking of workpieces, or driving a small clamp for holding.
Q: What should be noted when installing a magnetic switch?
A: This series is designed to support direct installation of suitable magnetic switches (sold separately). When installing, pay attention to selecting the appropriate switch model and installing it in the switch slot on the cylinder body. The detection point is set by adjusting the position.
