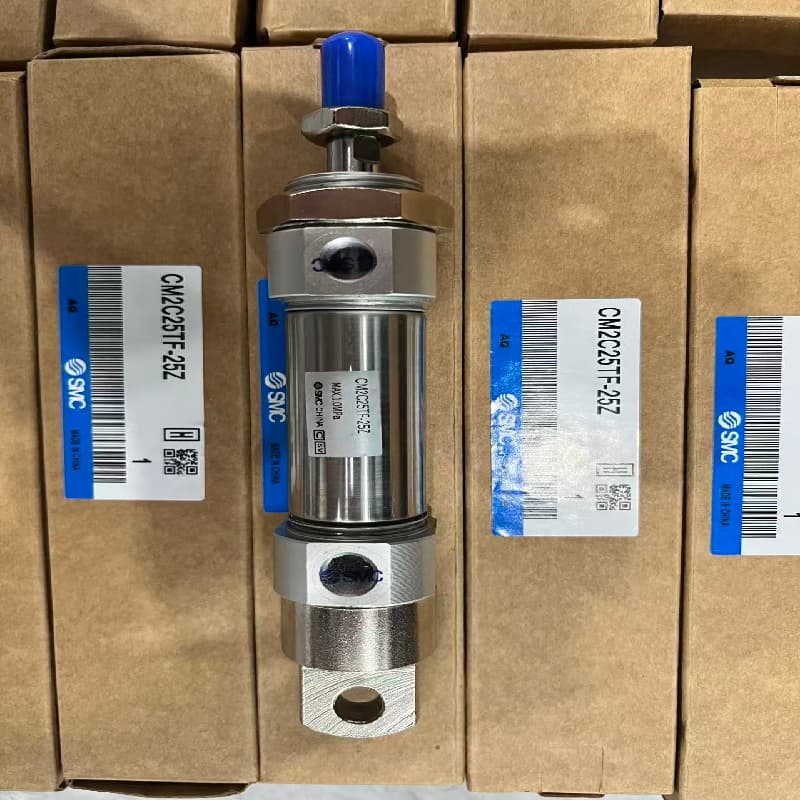

SMC CM2025TF-25Z CM2-Z Series Double-Rod Double-Acting Standard Cylinder

Name: SMC CM2025TF-25Z CM2-Z Series Double-Rod Double-Acting Standard Cylinder
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	CM2025TF-25Z
Product Type	Double-rod double-acting standard cylinder
Product Origin	China
Shipping Port	Xiamen
Weight	0.97 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The CM2025TF-25Z is a standard double-rod, double-acting cylinder from the SMC CM2-Z series, with a 25mm bore and 25mm stroke.

It features a double piston rod design, providing enhanced torsional resistance and smoother motion. This model uses a rod-side flange mounting method, with externally threaded rod ends and rubber cushioning.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Double-acting, double-bar design: Provides smooth push and pull forces, and the double-bar structure offers better torsional resistance.
✓ Flange mounting: Utilizes rod-side flange (TF) mounting for a secure and reliable fixation.
✓ Rubber cushioning: Rubber cushions at both ends of the piston absorb impact at the end of the movement, reducing noise.
✓ Position detection support: The cylinder body can be fitted with a magnetic switch (models without a "C" indicate the switch is not included) for automated position detection.

Technical Specifications

Brand	SMC
Model / Part Number	CM2025TF-25Z
Cylinder bore	20 mm
Stroke	25 mm (Key parameter for this model)
Actuation method	double rod double action
Operating pressure range	0.08 ~ 1.0 MPa
Ambient and Fluid Temperature	-10℃ ~ 70℃ (estimated)
Buffer type	Rubber buffer
Piping diameter	Rc 1/8

Frequently Asked Questions

Q: What automation scenarios is this cylinder suitable for?

A: It is ideal for scenarios requiring precise linear motion and a certain degree of torsional resistance, such as clamping, positioning, blocking, and pushing. The double-rod structure effectively prevents piston rod rotation, ensuring the stability of the end effector (such as a gripper).

Q: What actions can a 25mm stroke typically perform?

A: 25mm is a short stroke, suitable for performing rapid, reciprocating short-distance push-pull actions. For example, driving a small gripper to pick up a workpiece, or pushing a stop for positioning.

Q: What precautions should be taken when installing a magnetic switch?

A: This model (CM2025...) does not have a built-in magnetic ring. If you need to use a magnetic switch to detect position, please confirm whether the actual product is magnetic (models usually start with CDM20...). The switch can be directly inserted into the cylinder slot; adjusting the position sets the detection point.
