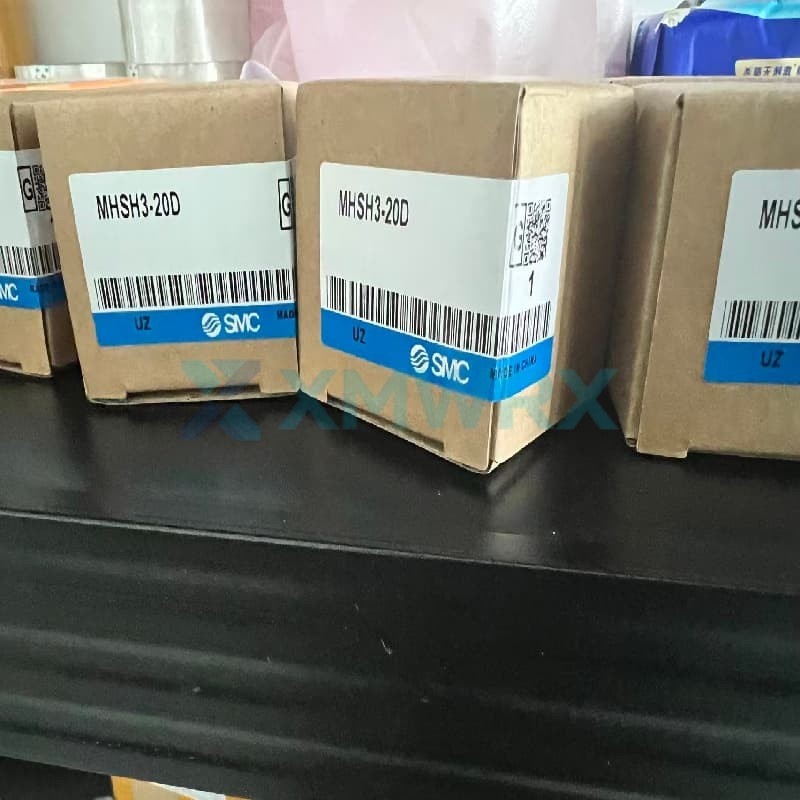

SMC MHSH3-20D High-precision parallel opening and closing type three-jaw pneumatic gripper

Name: SMC MHSH3-20D High-precision parallel opening and closing type three-jaw pneumatic gripper
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MHSH3-20D
Product Type	Three-jaw pneumatic gripper
Product Origin	China
Shipping Port	Xiamen
Weight	0.31 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The MHSH3-20D is a high-precision parallel-opening, three-jaw pneumatic gripper manufactured by SMC.

It employs a wedge-shaped cam structure, achieving a compact and lightweight design while ensuring powerful clamping force. Its repeatability is as high as ±0.01mm, making it ideal for automated operations requiring precise positioning. This model is double-acting and features a center through-hole for easy access via air lines or attachment of accessories.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-precision gripping: Repeat positioning accuracy reaches ±0.01mm, ensuring accurate gripping and placement.
✓ Three-jaw parallel opening and closing: Specifically designed for gripping round workpieces, providing balanced gripping force.
✓ Compact and lightweight: Low height and light weight (140g), easy to install at the end of space-constrained automated equipment.
✓ Dual-acting drive: Reliable operation with pneumatic control of jaw opening and closing.

Technical Specifications

Brand	SMC
Model / Part Number	MHSH3-20D
Action	Double-acting
Number of fingers	3 jaws
Clamping type	Parallel opening and closing
Cylinder diameter	20 mm
Ambient and Fluid Temperature	-10 ~ +60 ℃
Operating pressure range	0.2 ~ 0.6 MPa
Opening/closing stroke (diameter)	4 mm
Air port connection	M5 x 0.8
Applicable fluid	Air
Clamping force (at 0.5 MPa)	Outer diameter clamping 21 N, inner diameter clamping 26 N

Frequently Asked Questions

Q: What types of workpieces is the MHSH3-20D best suited for clamping?

A: This model features a three-jaw design, making it ideal for clamping cylindrical or cylindrical workpieces, providing stable and balanced clamping force.

Q: In what automation scenarios is it suitable?

A: Due to its small size, light weight, and high precision, it is ideal for use at the end of space in automated equipment, such as machine tool loading/unloading or the handling and assembly of small workpieces.

Q: Can the MHSH3-20D be equipped with sensors (automatic switches)?

A: Yes. This model has a built-in magnetic ring, allowing the installation of various SMC automatic switches (such as the M9B, M9N, M9P series) to detect the open and closed positions of the grippers.
