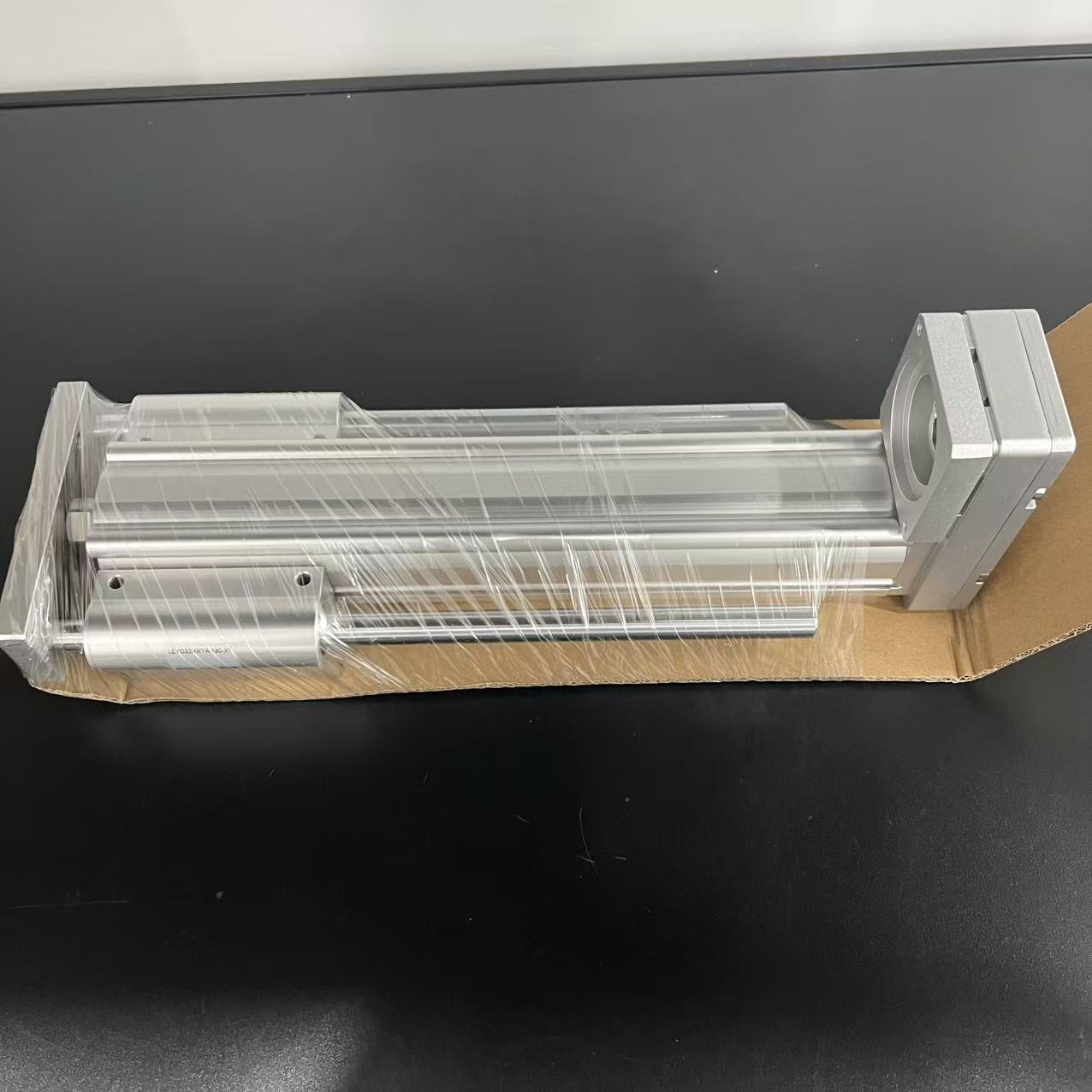

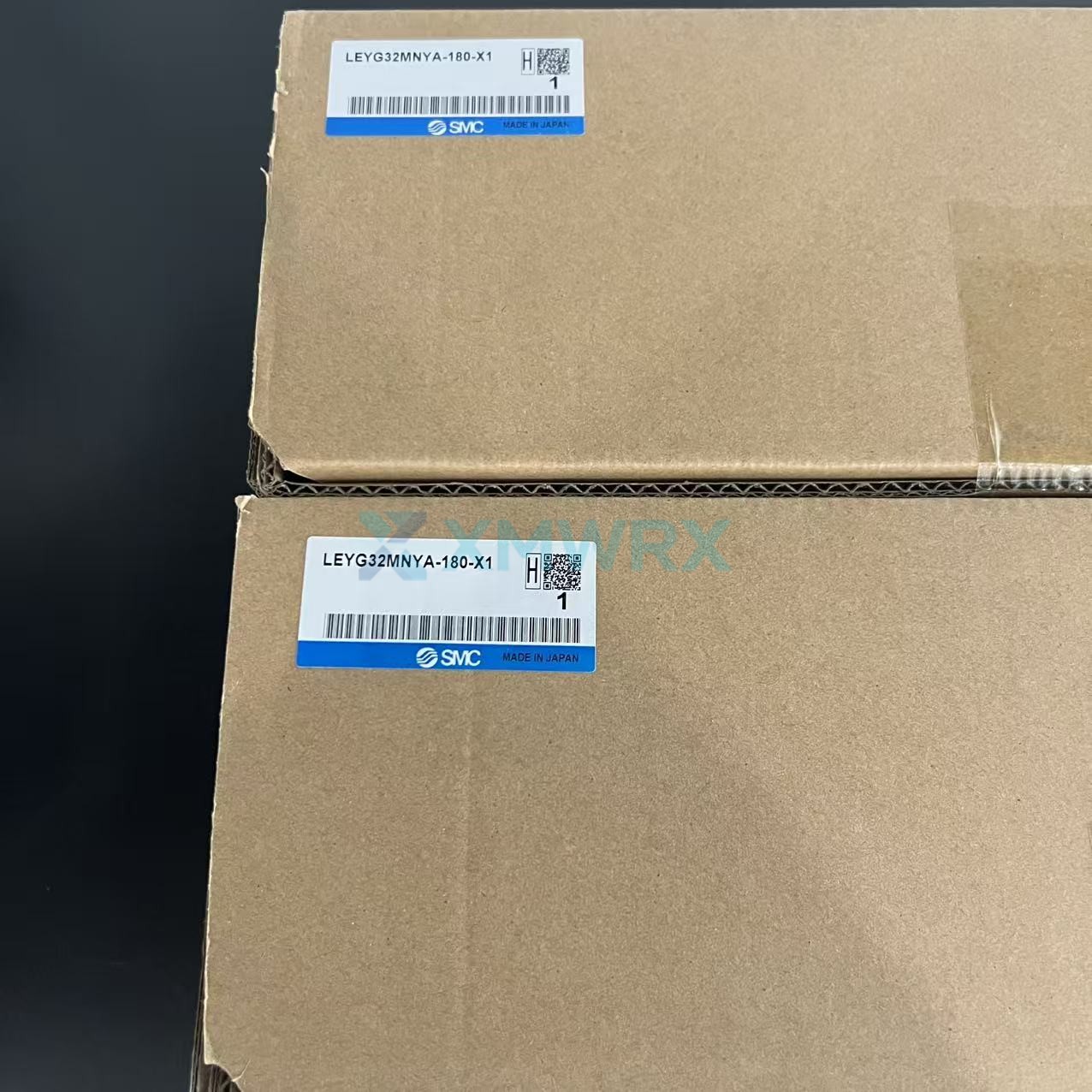

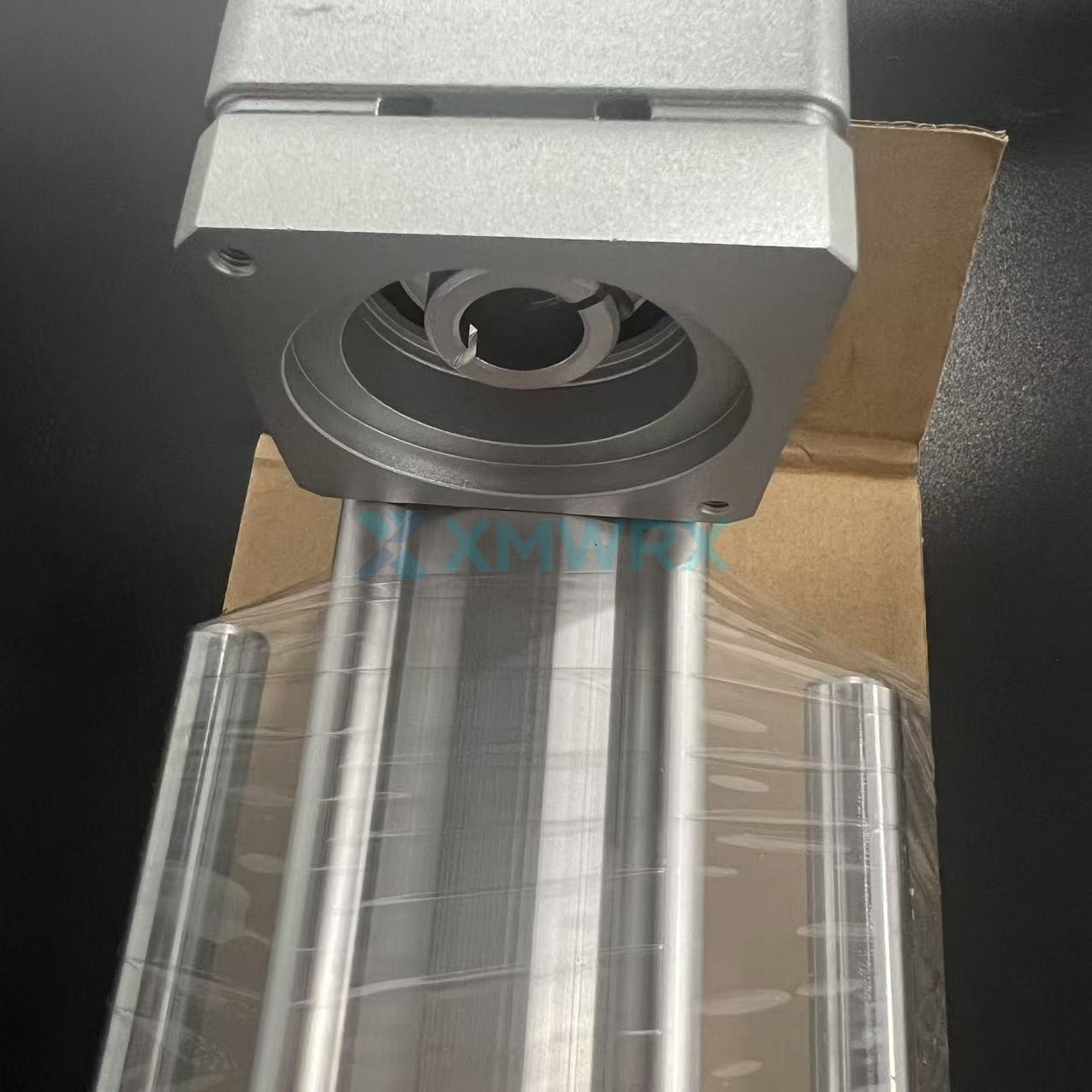

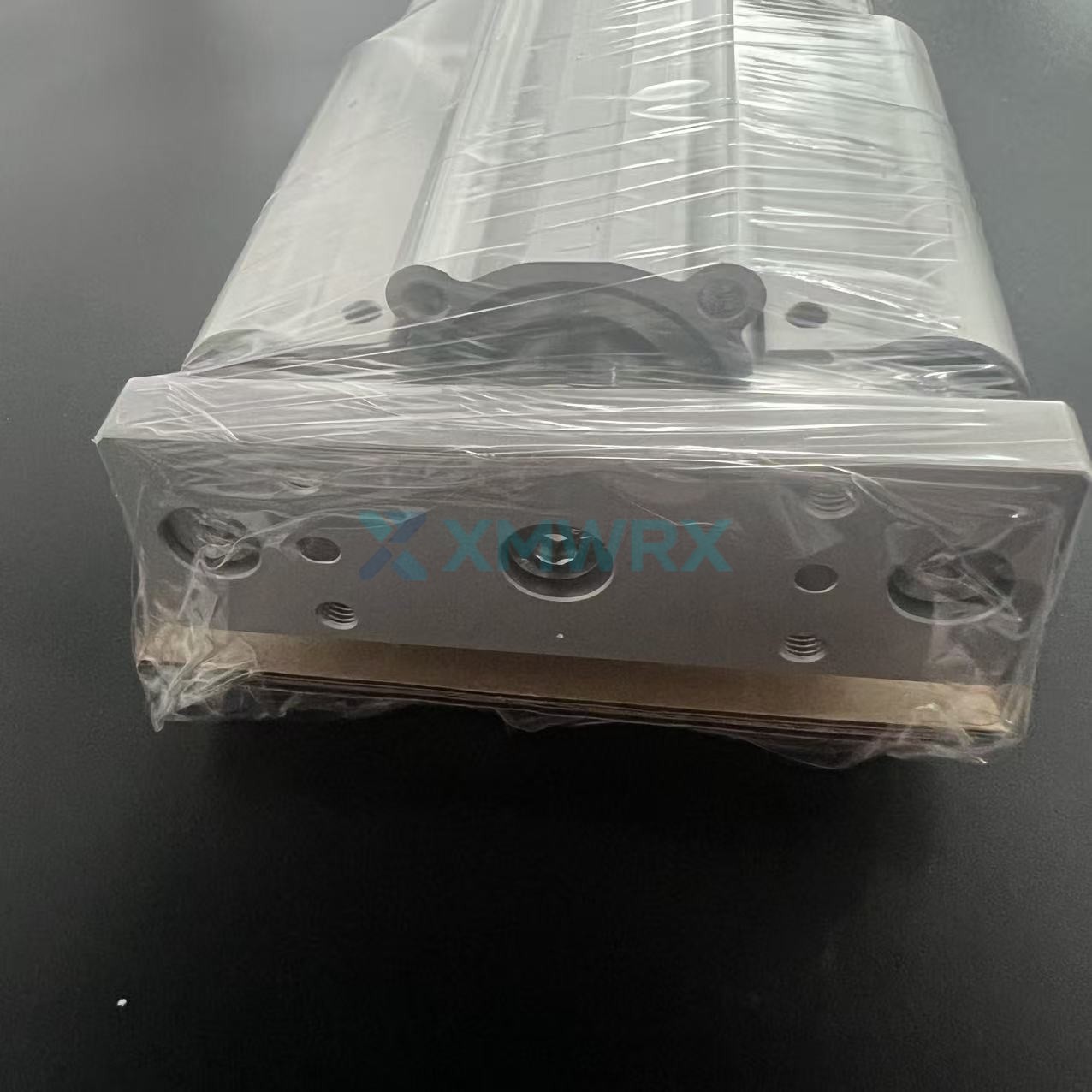

SMC LEYG32MNYA-180-X1 Electric actuators/guide rod type electric cylinder series

Name: SMC LEYG32MNYA-180-X1 Electric actuators/guide rod type electric cylinder series
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	LEYG32MNYA-180-X1
Product Type	Guide rod type electric actuator
Product Origin	Japan
Shipping Port	Xiamen
Weight	6 kg

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The LEYG32MNYA-180-X1 is a 32mm bore guide rod type electric actuator from SMC. Its integrated design of the guide rod and cylinder body achieves high lateral load tolerance and high-precision anti-rotation capability.

It supports both stepper motors (with encoder DC24V) and AC servo motors, enabling speed control, positioning control, and push-press control. This model boasts a repeatability of ±0.02mm and is widely used in precision handling, positioning, and pressing scenarios on automated production lines.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High lateral load capacity: The integrated guide rod design provides 5 times the lateral load capacity of ordinary rod-type designs.
✓ Switchable push control: Maintains the rod's push position on the workpiece, suitable for press-fitting and clamping applications.
✓ High-precision positioning: Repeatability below ±0.02mm, supports up to 64 position settings.
✓ Battery-free absolute encoder (some models): Retains position information even after power failure, eliminating the need for origin reset.

Technical Specifications

Brand/Series	SMC / LEYG32
Model / Part Number	LEYG32MNYA-180-X1
Itinerary range	180mm
Maximum pressure thrust	707 N (Maximum)
Maximum speed	500 mm/s (Maximum)
Lead screw lead	4 / 8 / 16 mm
Repeatability	±0.02 mm or less

Frequently Asked Questions

Q: What are the suitable applications for the LEYG32?

A: Suitable for applications requiring lateral load resistance and anti-rotation, such as workpiece pushing, clamping, blocking positioning, and vertical lifting and handling (maximum vertical load capacity 17kg).

Q: Can it be used for vertical load holding?

A: Yes. The LEYG32 can hold approximately 17kg vertically. For power-off holding, a model with a brake (lock) can be selected (model number containing "B").

Q: Must the LEYG32 be used with an SMC driver?

A: For the stepper motor/servo motor version, it is recommended to use SMC's LECP series or JXC series drivers to ensure optimal performance. However, SMC also offers motorless versions, allowing users to configure other brands of motors as needed.
