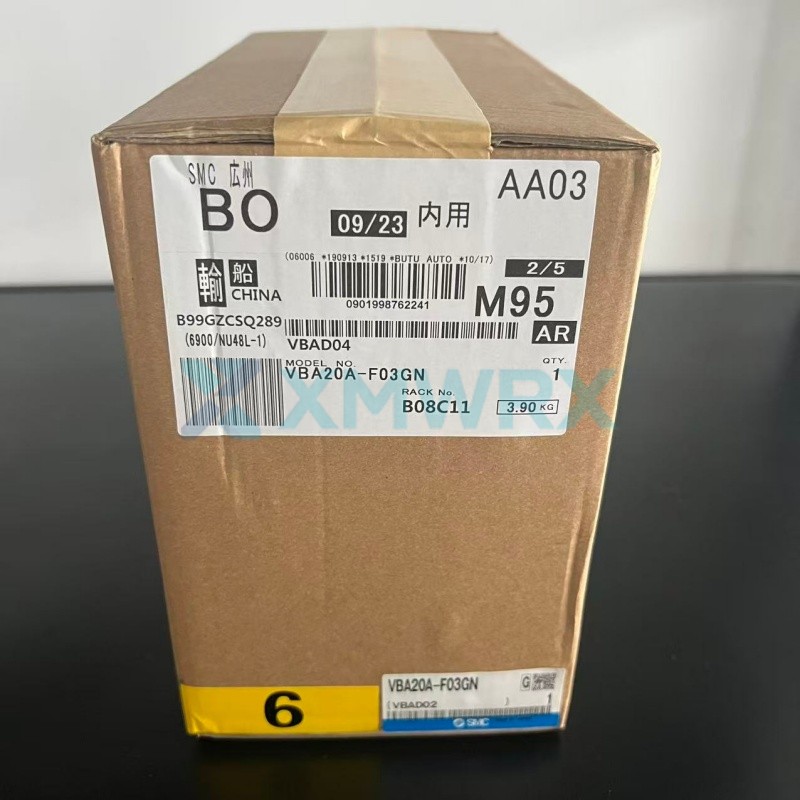

SMC VBA20A-F03GN booster regulator 3/8, VBA BOOSTER REGULATOR

Name: SMC VBA20A-F03GN booster regulator 3/8, VBA BOOSTER REGULATOR
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	VBA20A-F03GN
Product Type	pneumatic booster regulator
Product Origin	Japan
Shipping Port	Xiamen
Weight	8.6 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The VBA20A-F03GN is a pneumatic booster regulator from SMC's VBA series, capable of doubling the main air pressure for energy savings.

This model uses a G 3/8 port connection and comes standard with a pressure gauge and silencer. It operates without a power source, and the desired boost pressure can be easily set via a handwheel.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Pressure Doubling: Input pressure can be increased up to twice its original value (pressure ratio 2:1).
✓ No Power Required: Purely pneumatic control, suitable for explosion-proof or electrical-accessible environments.
✓ Integrated Design: Comes with a pressure gauge and silencer for easy installation and maintenance.
✓ Adjustable Pressure: Output pressure is steplessly adjustable from 0.2 to 1.0 MPa.

Technical Specifications

Brand/Series	SMC / VBA
Model / Part Number	VBA20A-F03GN
Port Connection	G 3/8
Pressure Ratio	2:1
Maximum Set Pressure	1.0 MPa
Minimum Set Pressure	0.2 MPa
Maximum Input Pressure	1.0 MPa
Operating Temperature Range	+2°C to +50°C
Accessories	Pressure gauge, silencer

Frequently Asked Questions

Q: When is VBA20A-F03GN needed?

A: When the factory's standard air source pressure (e.g., 0.5MPa) is insufficient to drive certain equipment (such as large-bore cylinders or pneumatic presses), it can easily boost the local pressure to 1.0MPa without replacing the air compressor.

Q: Can it be used in cleanrooms or the food industry?

A: This model is the standard specification. For applications with special cleanliness or corrosion resistance requirements, it is recommended to select a variant with appropriate protection (e.g., rust prevention).

Q: Are there any special installation requirements?

A: The booster valve must be installed horizontally (piston in a horizontal position) to ensure the proper functioning of its internal reversing valve. It is also recommended to install an air filter on its secondary side (outlet side) to prevent trace dust generated by internal sliding parts from affecting downstream applications.
