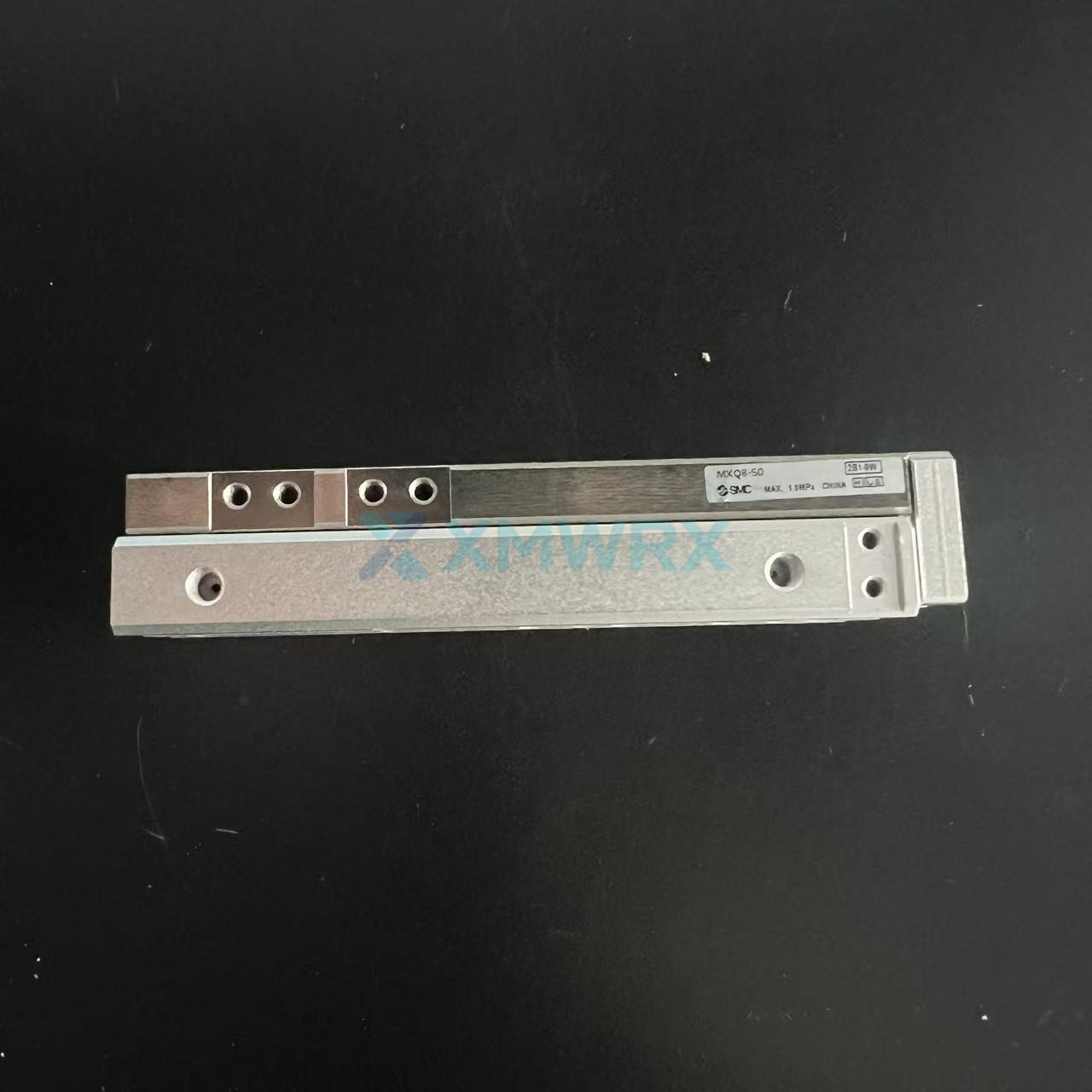

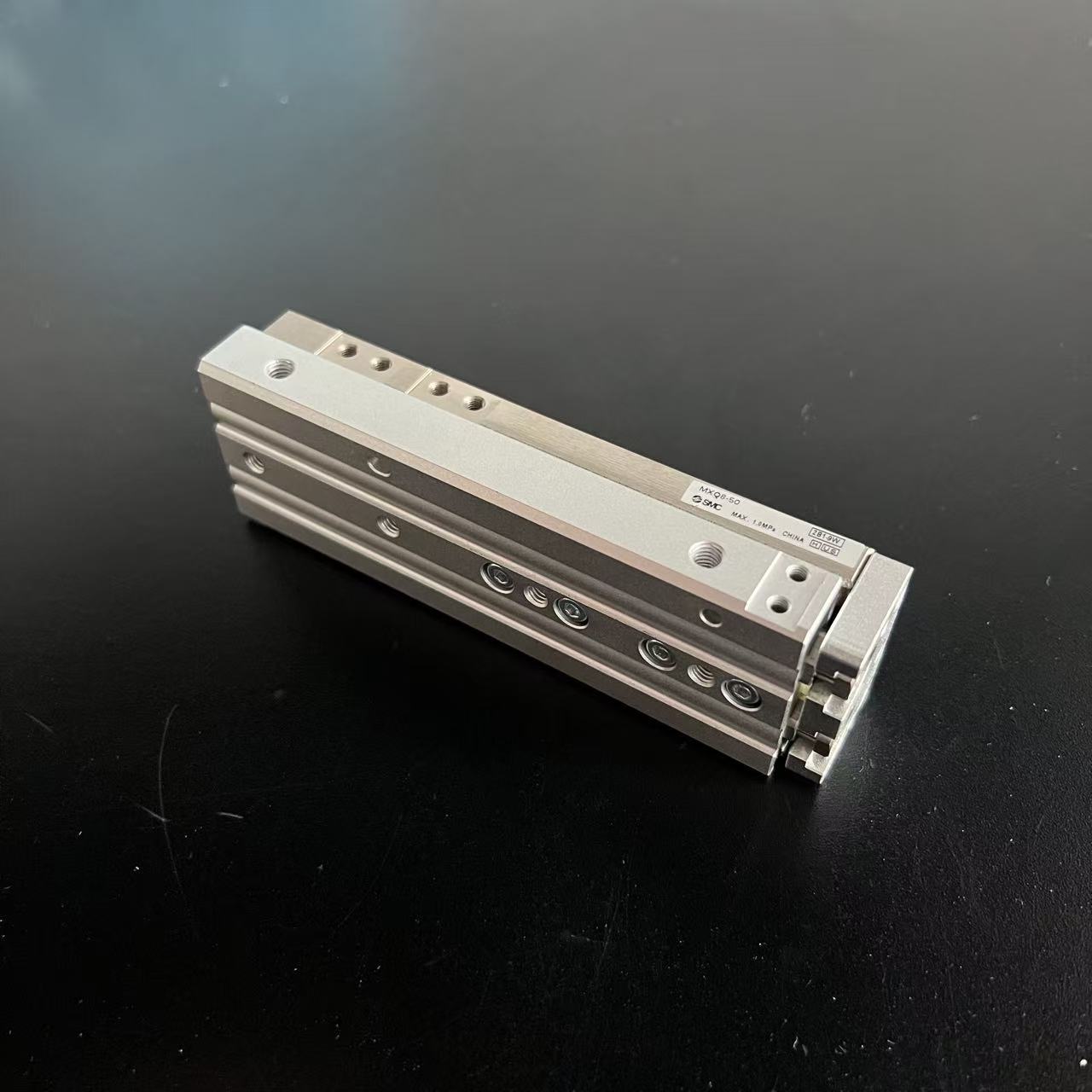

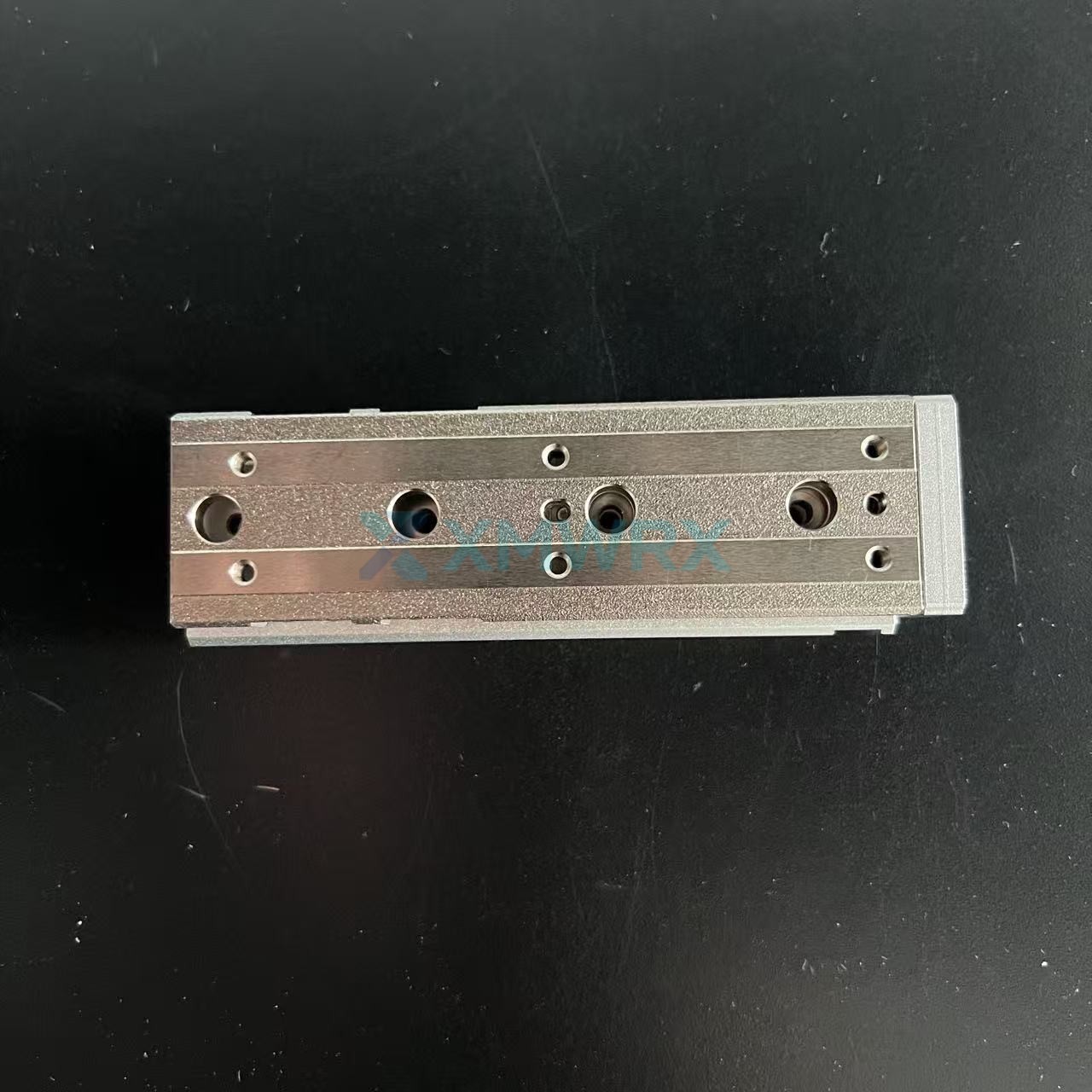

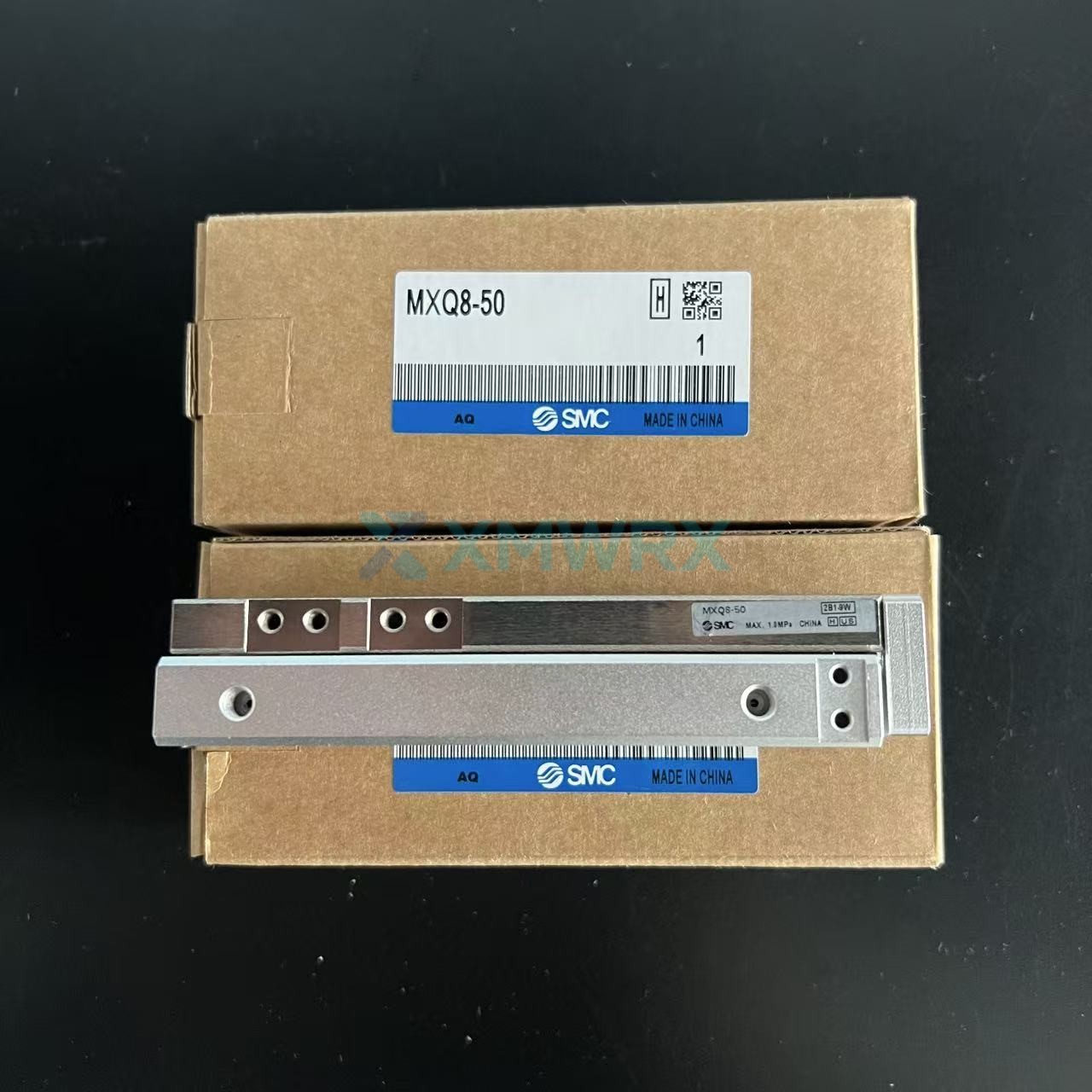

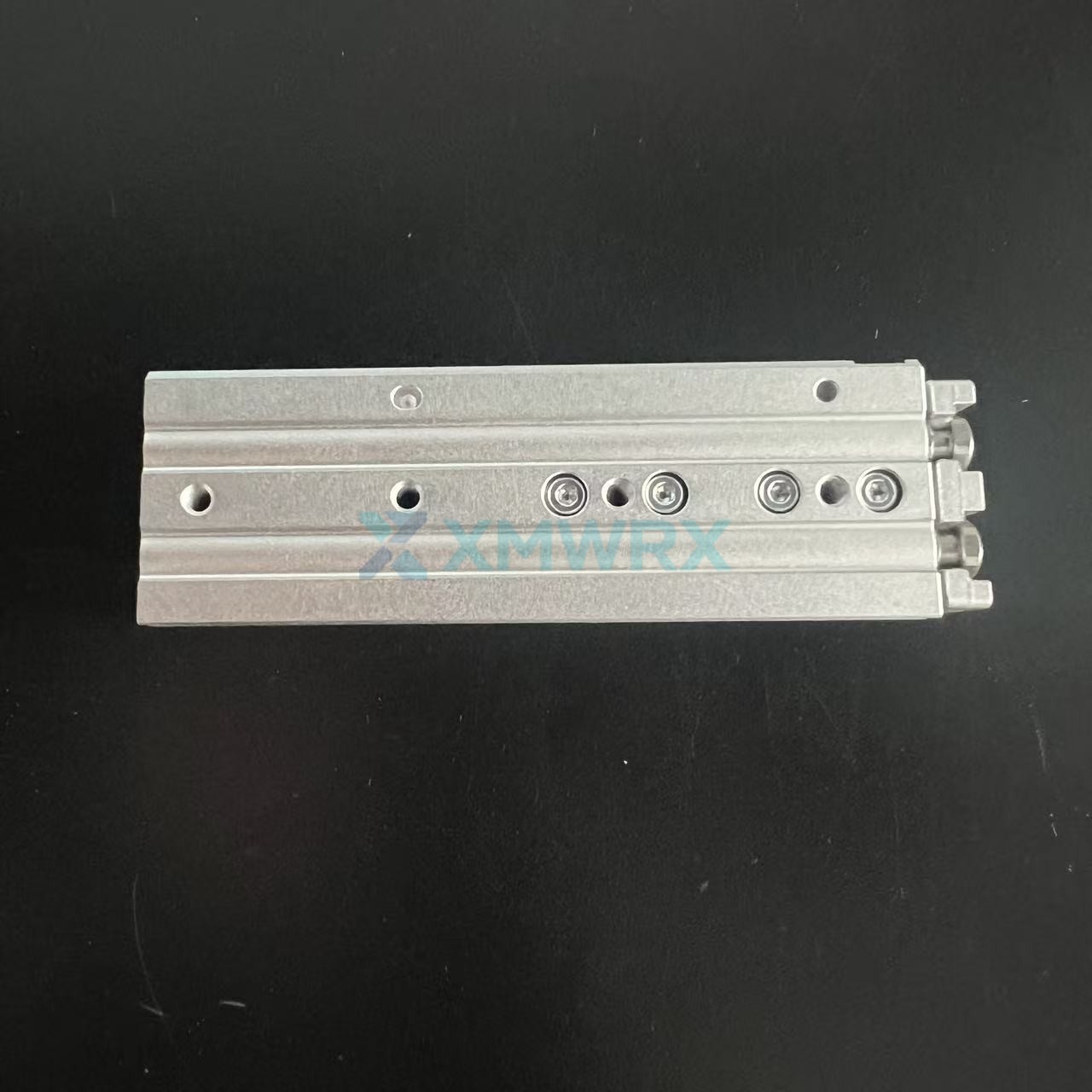

SMC MXQ8-50 MXQ series High-precision pneumatic slide

Name: SMC MXQ8-50 MXQ series High-precision pneumatic slide
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MXQ8-50
Product Type	High-precision pneumatic slide
Product Origin	China
Shipping Port	Xiamen
Weight	0.69 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The MXQ8-50 is a high-precision pneumatic slide table manufactured by SMC.

It compactly integrates a cylinder and a circulating linear guide, achieving miniaturization and weight reduction while ensuring high rigidity and precision. This product is ideal for applications such as precision assembly and positioning, and its dual-cylinder structure gives it twice the output force of single-cylinder models.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High-precision guidance: Employs a circulating linear guide rail to achieve high rigidity, high precision, and non-rotational performance.
✓ Dual-cylinder drive: Built-in dual-cylinder structure, output force is twice that of traditional single-cylinder models.
✓ Compact integration: The worktable and cylinders are compactly integrated, resulting in a small size and light weight, saving installation space.
✓ Flexible installation: The main body is equipped with a magnetic ring, allowing for the installation of magnetic switches for position detection, and features various buffer and limit options.

Technical Specifications

Brand	SMC/ MXQ Series
Model / Part Number	MXQ8-50
Bore	8mm (Dual cylinder, equivalent to the output of an 11mm bore single cylinder)
Stroke	50mm
Actuation	Double-acting
Operating Pressure	0.15 - 0.7 MPa
Connection Diameter	M5 x 0.8mm
Operating Temperature	-10℃ to 60℃
Lubrication	No oil required

Frequently Asked Questions

Q: Can it be used on precision assembly lines?

A: Absolutely. It was designed for precision assembly. The circulating linear guide ensures high precision and smooth movement, while the dual-cylinder structure provides sufficient assembly force.

Q: How do I choose a model with cushioning?

A: The standard MXQ8-50 typically does not have cushioning. If cushioning is required, choose models with suffixes, such as MXQ8-50B (rubber cushioning) or MXQ8-50A (hydraulic cushioning).

Q: Can the MXQ8-50 be fitted with magnetic switches?

A: Yes. This model has a built-in magnetic ring, allowing direct installation of SMC magnetic switches (such as the D-M9B series) for position detection. Mounting grooves are also provided on both sides of the slide.
