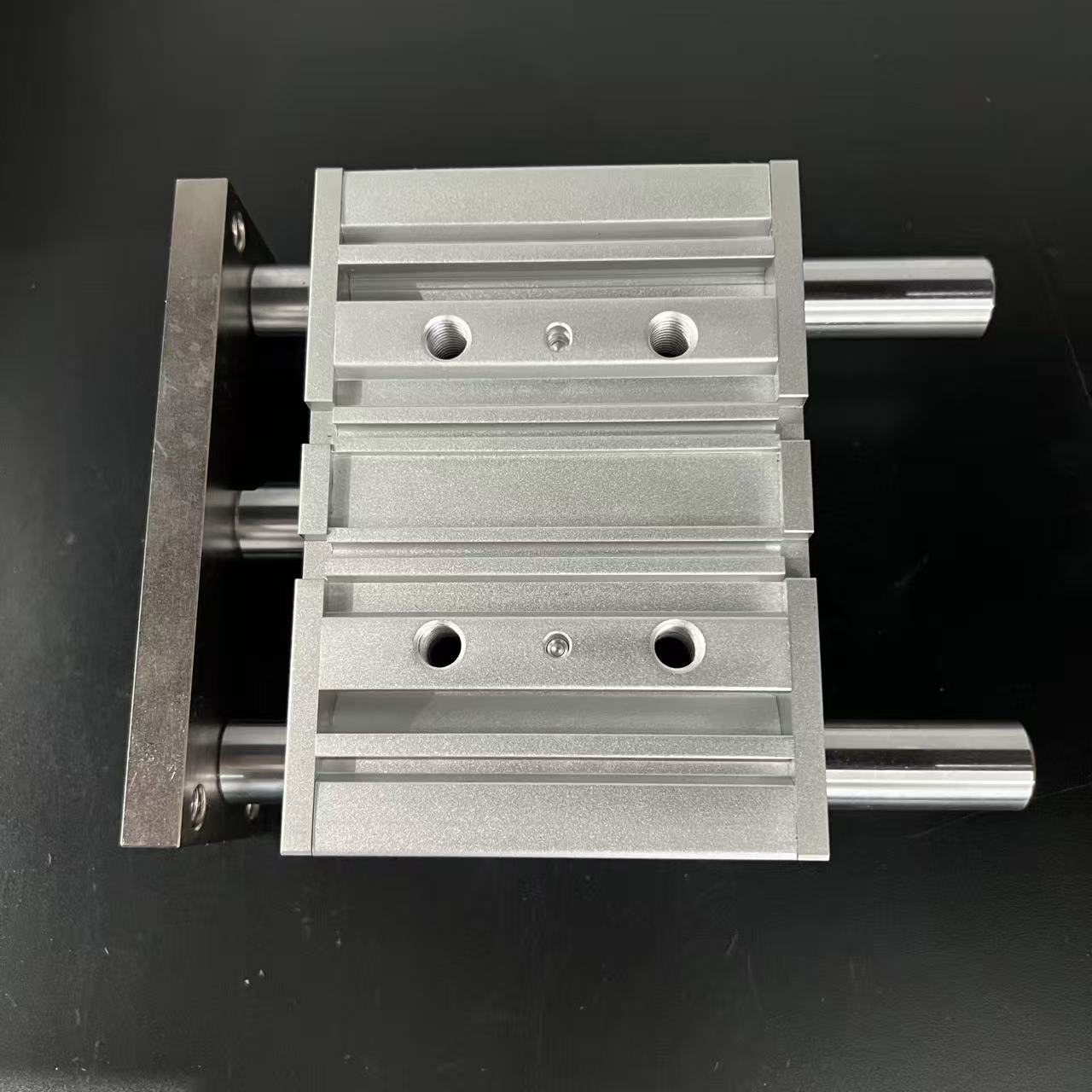

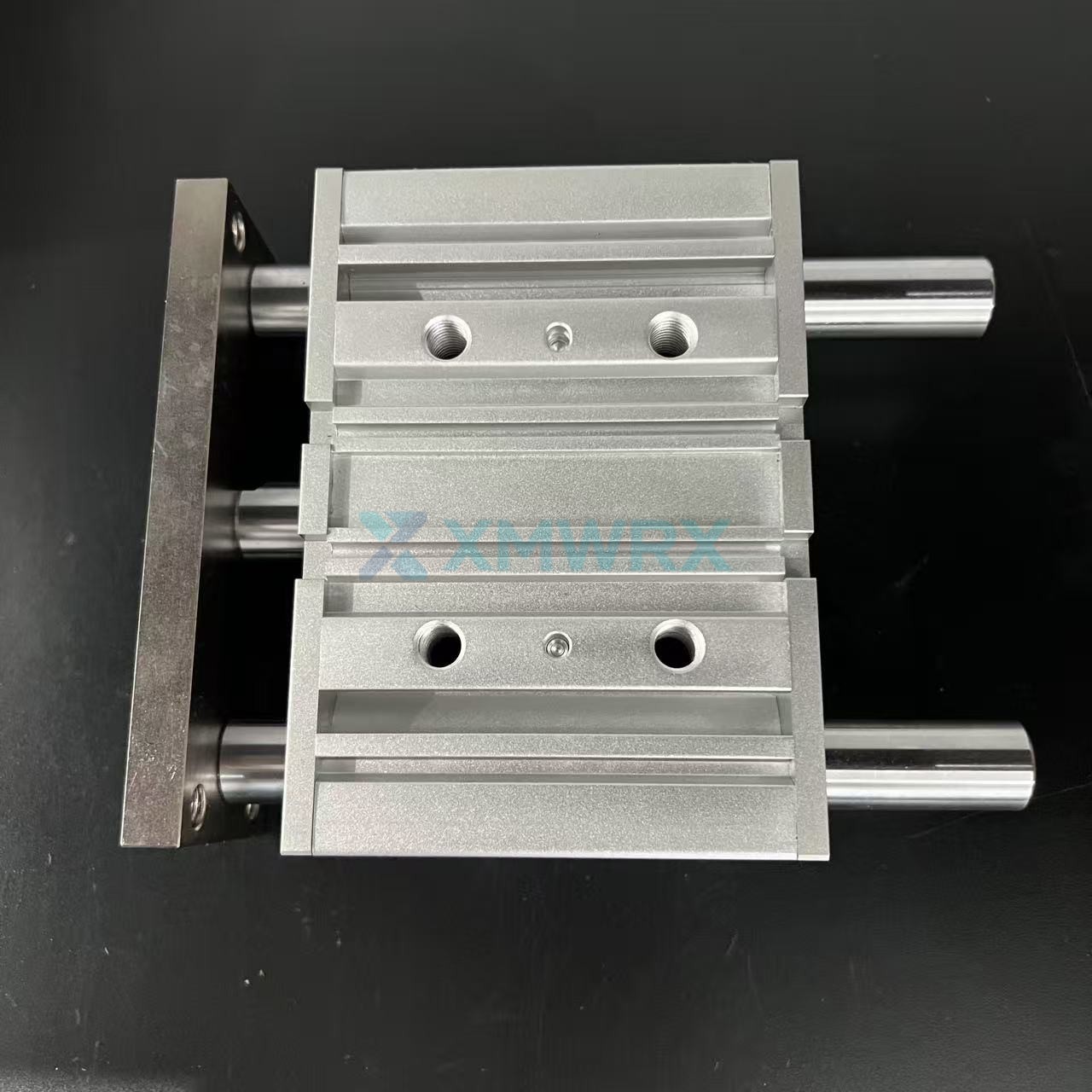

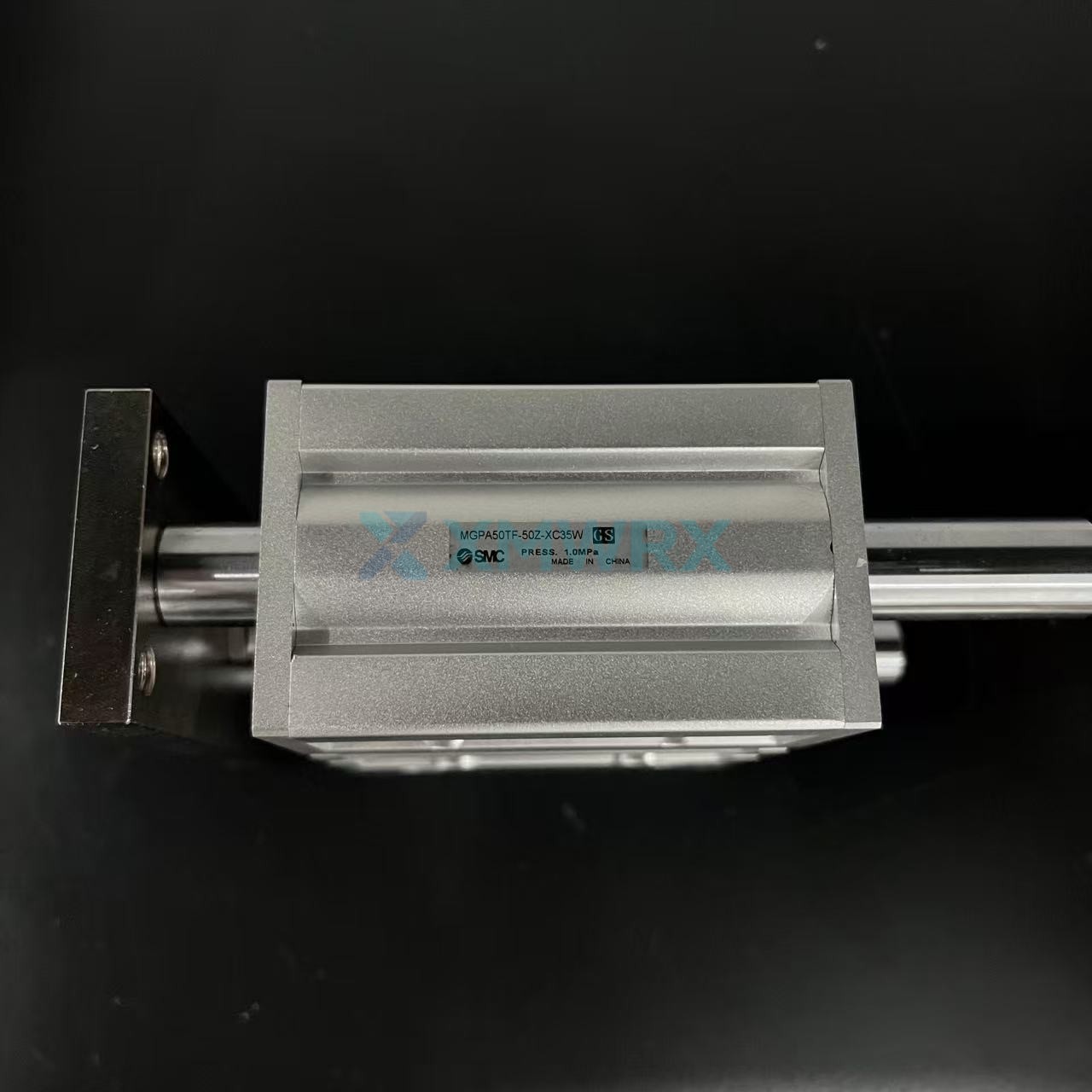

The MGPA50TF-50Z-XC35W is a slim cylinder with a guide rod from SMC's MGP-Z series, featuring a 50mm bore and 50mm stroke, and a double-acting design. It incorporates a high-precision ball bushing guide mechanism (MGPA-Z series designation), providing excellent resistance to lateral loads and a ±0.03° rotational accuracy, making it suitable for applications requiring high rigidity and high-precision positioning.
As a "slim" cylinder, its compact structure achieves significant space-saving and lightweight design. The "F" in the model number indicates a flange mounting type with a G 1/4 port size. This model is a custom-designed version with special specifications (suffix "XC35W"); for specific mounting accessories or derivative features, please consult the official documentation.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ High-precision guidance: Built-in high-precision ball bushings ensure rotational accuracy of ±0.03° and strong resistance to lateral loads.
- ✓ Compact and space-saving: The slim design reduces weight by up to 24% compared to traditional models, saving installation space.
- ✓ Smooth dual-action: Bidirectional actuation via compressed air ensures smooth and reliable operation.
- ✓ Direct-mount switch: The circular magnetic switch can be directly installed without a partition, simplifying the design.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MGPA50TF-50Z-XC35W |
| Cylinder bore |
50 mm
|
| stroke |
50 mm |
| Port size |
G 1/4 |
| Actuation mode |
Double-acting |
| Mounting method |
Flange type (F in model number) |
| Maximum operating pressure |
1 MPa |
| Dimensions (approx.) |
Height 112 mm |
| Maximum piston speed |
500 mm/s |
Frequently Asked Questions
Q: What scenarios is this cylinder suitable for?
A: It is ideal for automated equipment requiring high-precision linear motion and a certain level of torsional resistance, such as precision assembly, positioning, clamping, and transfer processes.
Q: What precautions should be taken when installing this cylinder?
A: It is important to provide clean, dry compressed air that meets specifications and ensure the flatness and rigidity of the mounting surface to achieve its high-precision guiding performance. Also, its dimensions (148mm wide x 117mm high) should be considered to allow sufficient installation space.
Q: What are its mounting accessories and interfaces?
A: This model has a G 1/4 port size; corresponding connectors and tubing should be selected. For specific installation methods and optional accessories (such as switches and mounting brackets), please refer to the SMC official selection manual. You can confirm the details by looking for special suffixes such as "XC35W" in the model number.
