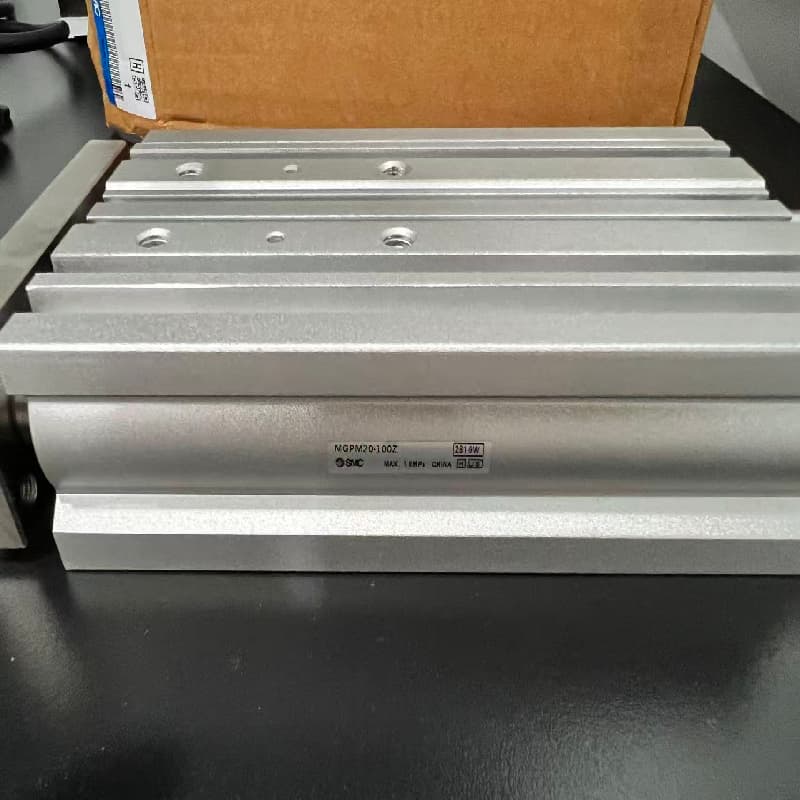

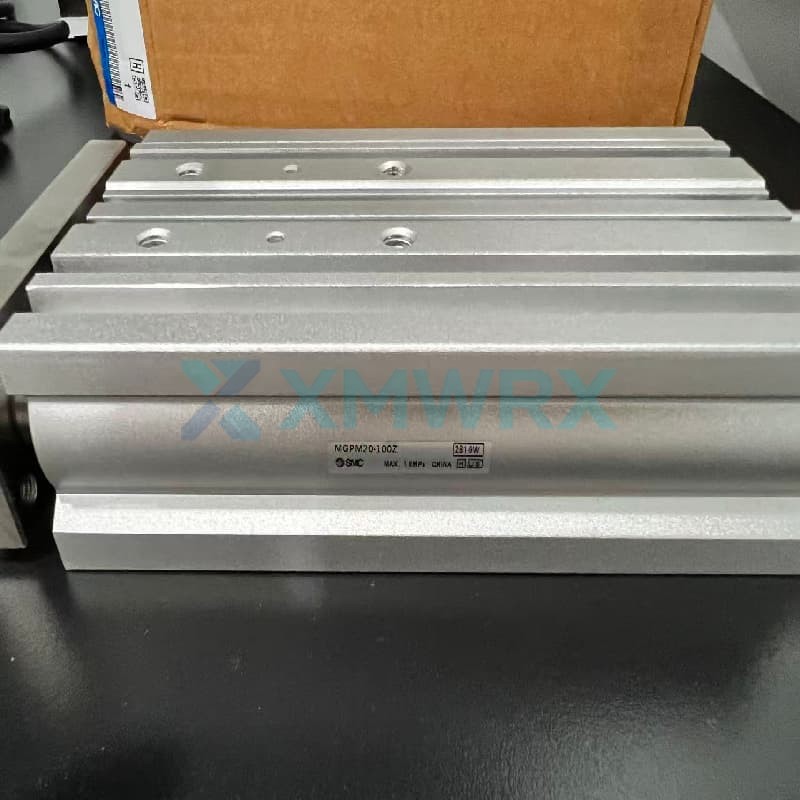

The MGPM20-100Z is a slim cylinder with a guide rod from SMC, belonging to the MGP-Z series. It has a 20mm bore and a 100mm stroke.
Its integrated guide rod and cylinder design reduces weight by up to 24% and shortens the guide rod by up to 22mm compared to older models, reducing the amount of clearance hole machining required during installation. This model is suitable for automated applications such as feeding, lifting, and positioning, and is particularly suitable for space-constrained environments requiring guidance.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Dual-acting drive: Piston rod extension and retraction are controlled by pneumatic pressure, achieving bidirectional motion control.
- ✓ Slide bearing guidance: Utilizing slide bearings, the structure is compact and can withstand certain radial loads and bending moments.
- ✓ Adjustable speed: Piston speed can be adjusted within the range of 50-500 mm/s to adapt to different operating conditions.
- ✓ Direct-mount switch: The round magnetic switch can be directly installed without a partition, reducing parts and labor time.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MGPM20-100Z |
| Cylinder bore |
20 mm |
| Cylinder stroke |
100 mm |
| Operating pressure |
0.1 ~ 1.0 MPa |
| Operating temperature |
-10 ~ 60℃ |
| Piston speed |
50 ~ 500 mm/s |
| Type of thread for the sprue |
Rc (1/8 inch) |
| Actuation type |
Double-acting |
| Operating fluid |
Air |
| Cushioning type |
Rubber cushions on both sides |
| Bearing type |
Sliding bearing (standard) |
| Magnetic switch |
Built-in magnetic ring, supports direct mounting |
Frequently Asked Questions
Q: Can the MGPM20-100Z be used vertically?
A: Yes. When using vertically, a speed control valve must be installed to control the descent speed and prevent the cylinder from extending rapidly due to the load falling, ensuring safe and stable operation.
Q: Is it suitable for environments with water or coolant?
A: Yes. This model can be equipped with a water-resistant 2-color indicator magnetic switch, suitable for environments with water or coolant, such as factory manufacturing machinery, food manufacturing machinery, and car wash machines.
Q: What magnetic switches can it be installed with?
A: Many options are available. Round magnetic switches and strong magnetic field resistant magnetic switches can be installed directly without a partition. Recommended models include the D-M9*W series (2-color indicator solid-state switch), as well as the M9N, M9B, and Z73 series.
