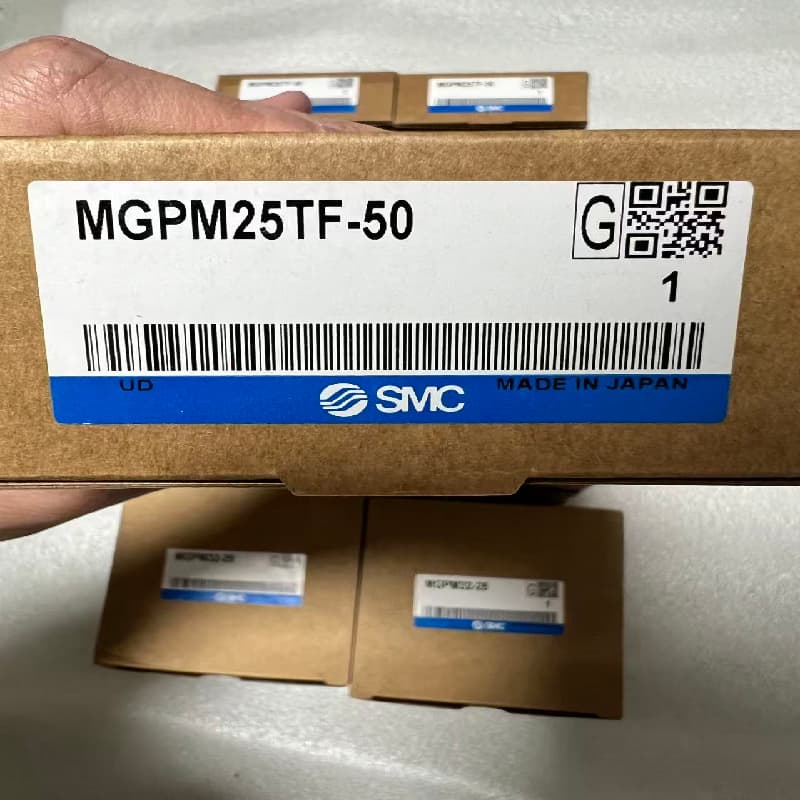

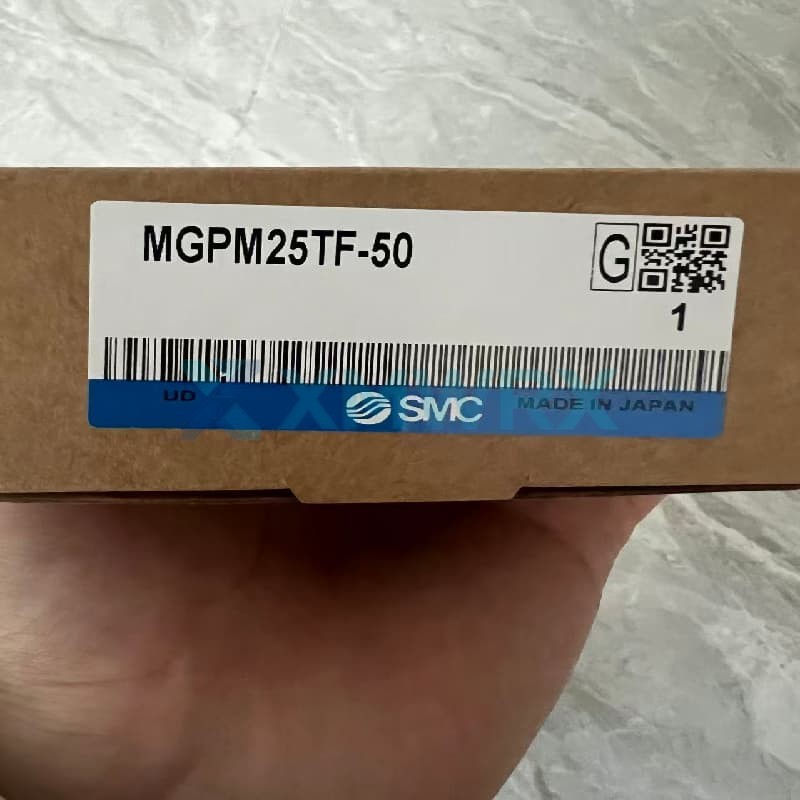

The MGPM25TF-50 is a slim cylinder with a guide rod from SMC, belonging to the MGP series.
It integrates the guide rod and cylinder into a single design, has a 25mm diameter and a 50mm stroke, and uses sliding bearing guidance, enabling it to withstand significant radial loads and bending moments. This model is suitable for automated applications such as conveyor line stopping, lifting, positioning, and ejection.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Dual-acting drive: Piston rod extension and retraction are controlled by pneumatic pressure, achieving bidirectional motion control.
- ✓ Sliding bearing guidance: Built-in carbon steel alloy sliding bearings provide lateral stability and can withstand lateral load impacts.
- ✓ High lateral force resistance: Its ability to resist lateral loads is more than twice that of traditional stop cylinders.
- ✓ Multi-faceted installation: Supports multiple installation methods including top, side, bottom, and T-slot side mounting, flexibly adapting to space requirements.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MGPM25TF-50 |
| Cylinder bore |
25 mm |
| Cylinder stroke |
50 mm |
| Operating pressure |
0.1 ~ 1.0 MPa |
| Operating temperature |
-10 ~ 60℃ |
| Piston speed |
50 ~ 500 mm/s |
| Type of thread for the sprue |
G 1/8 |
| Action |
Double-acting |
| Fluid |
Air |
| Cushioning Type |
Rubber cushions on both sides |
| Bearing Type |
Sliding bearing (standard), ball bearing option also available |
Frequently Asked Questions
Q: Can it be used for vertical lifting loads?
A: Yes. This model is available with an end-lock feature, which maintains the cylinder position even if the air supply is disconnected, preventing the load from falling. It is particularly suitable for vertical lifting applications.
Q: How is its resistance to lateral forces?
A: Very strong. Due to its integrated guide rod and cylinder body structure, its ability to withstand lateral loads is more than twice that of traditional stop cylinders. It is suitable for applications requiring resistance to lateral impacts, such as conveyor line stopping and positioning.
Q: Can it be fitted with magnetic switches?
A: Yes. The cylinder has two surfaces that can be fitted with automatic switches (magnetic switches), supporting models such as reed switches (e.g., the 161-782 series) for detecting piston position.
