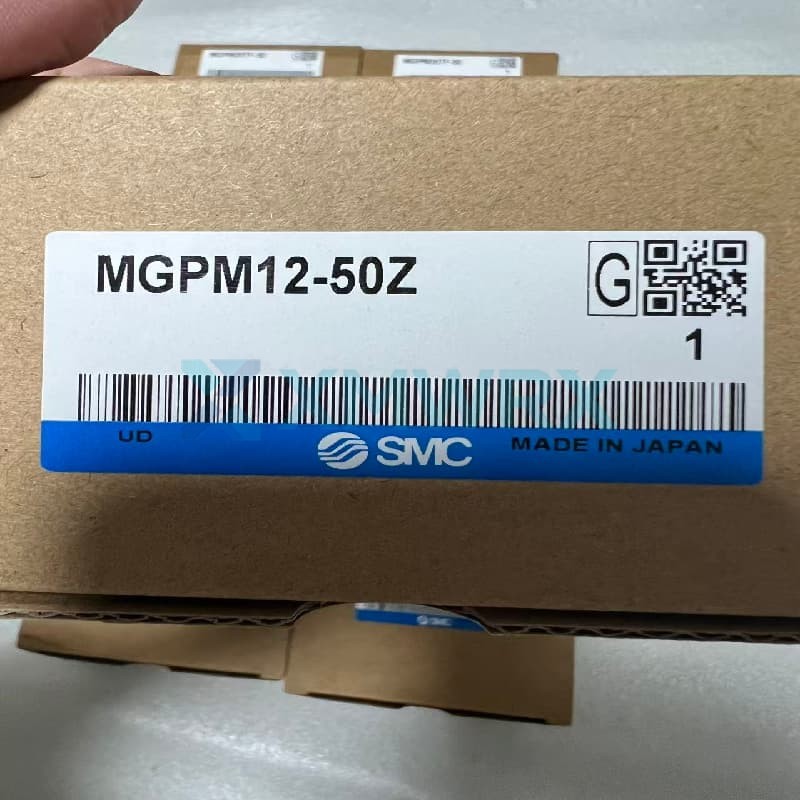

The MGPM12-50Z is a slim cylinder with a guide rod from SMC, belonging to the MGP series.
It integrates the guide rod and cylinder into a single design, maintaining a compact structure while withstanding certain radial loads and bending moments. This model has a 50mm stroke and uses sliding bearing guidance, making it suitable for automation applications with space constraints but requiring precise guidance.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ Dual-acting drive: The piston rod extension and retraction are controlled by pneumatic pressure, achieving bidirectional motion control.
- ✓ Sliding bearing guide: Built-in sliding bearings result in a simple structure, lower cost, and suitability for medium load conditions.
- ✓ Adjustable speed: Piston speed is adjustable within the range of 50-500 mm/s.
- ✓ Compact and space-saving: The guide rod is up to 22mm shorter than the previous model, reducing the amount of machining required for installation.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MGPM12-50Z |
| Cylinder bore |
12 mm |
| Cylinder stroke |
50 mm |
| Operating pressure |
0.12 ~ 1.0 MPa |
| Operating temperature |
-10 ~ 60℃ |
| Piston speed |
50 ~ 500 mm/s |
| Port diameter |
M5 x 0.8 |
| Cushioning type |
Side-mounted cushioning (rubber cushioning) |
| Actuation type |
Double-acting |
| Operating fluid |
Air |
| Bearing type |
Sliding bearing |
| Material |
Cylinder block/head: Aluminum alloy; Piston rod: Stainless steel |
Frequently Asked Questions
Q: Can the MGPM12-50Z be used vertically?
A: Yes. However, a speed control valve must be installed when using it vertically to prevent the cylinder from extending rapidly due to load drop, ensuring safe and stable operation.
Q: Is its 50mm stroke the maximum stroke?
A: No. The standard stroke range for the MGP series with a 12mm cylinder bore is 10-200mm, and 50mm is one of the commonly used specifications. If the stroke is insufficient, other stroke models in the same series can be selected.
Q: Can it be fitted with magnetic switches?
A: Yes. The cylinder has a built-in magnetic ring, allowing direct installation of SMC circular magnetic switches (such as the M9N, M9B, Z73 series, etc.) without additional partitions.
