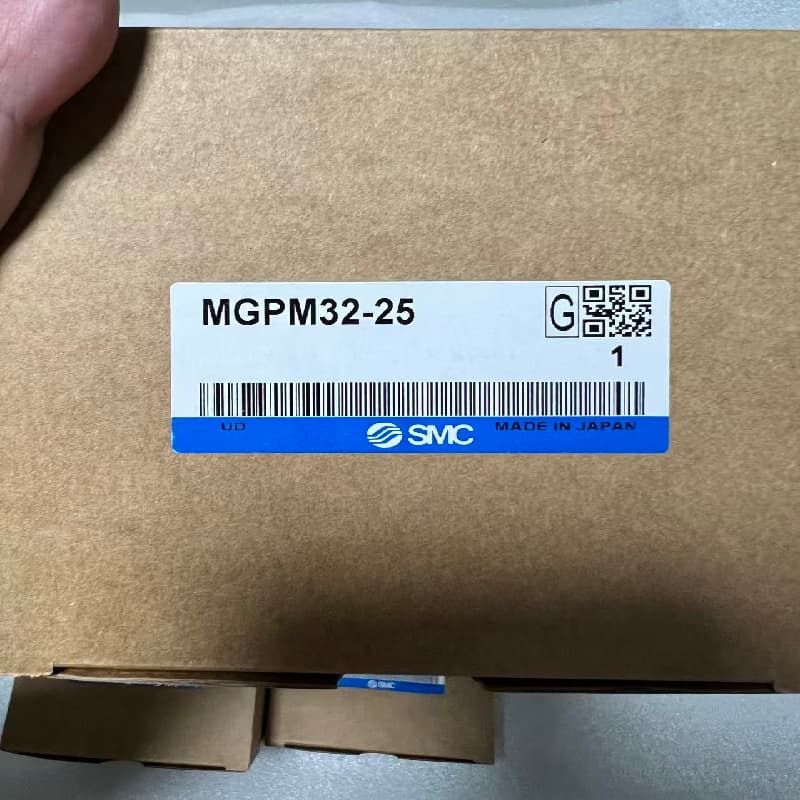

The MGPM32-25 is a slim cylinder with a guide rod from SMC, belonging to the MGP series.
It integrates the cylinder and guide rod into a compact design, capable of withstanding large radial loads and bending moments. This cylinder is primarily used in automated applications such as feeding, lifting, and limiting, and is particularly suitable for space-constrained situations requiring high-precision guidance.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Core Features
- ✓ High load capacity: Built-in guide rod allows direct bearing of large lateral loads and moments, eliminating the need for additional guiding mechanisms.
- ✓ Double-acting drive: Utilizing a double-acting design, the piston rod extends and retracts via pneumatic pressure, achieving bidirectional motion control.
- ✓ Adjustable speed: Piston speed is adjustable from 50-500 mm/s to adapt to various operating conditions.
- ✓ Flexible installation: Mounting bolt holes are located on the side and bottom of the cylinder block, supporting four installation methods and allowing piping from two directions, providing strong adaptability.
Technical Specifications
| Brand |
SMC |
| Model / Part Number |
MGPM32-25 |
| Cylinder bore |
32 mm |
| Cylinder stroke |
25 mm |
| Operating pressure |
0.1 ~ 1.0 MPa |
| Operating temperature |
-10 ~ 60℃ |
| Piston speed |
50 ~ 500 mm/s |
| Type of thread for the sprue |
Rc (1/8 inch) |
| Actuation type |
Double-acting |
| Operating fluid |
Air |
| Cushioning type |
Side-mounted cushioning (rubber cushioning) |
| Bearing type |
Sliding bearing |
| Lubrication |
No lubrication required |
Frequently Asked Questions
Q: Can it be used for vertical lifting loads?
A: Yes, but speed control is crucial. When used vertically, a high load rate may cause rapid extension (falling). It is strongly recommended to use a dual-speed control valve to ensure safe and stable operation.
Q: Does the mounting plate need clearance holes?
A: Yes. When the cylinder retracts to its end, the guide rod will protrude beyond the mounting base. Therefore, clearance holes must be machined into the mounting plate; otherwise, interference will prevent installation.
Q: Can it directly mount magnetic switches?
A: Yes. The cylinder body has mounting grooves on both sides, allowing direct mounting of round or square contactless magnetic switches (such as models M9N, M9B, Z73, etc.) without additional partitions for piston position detection.
