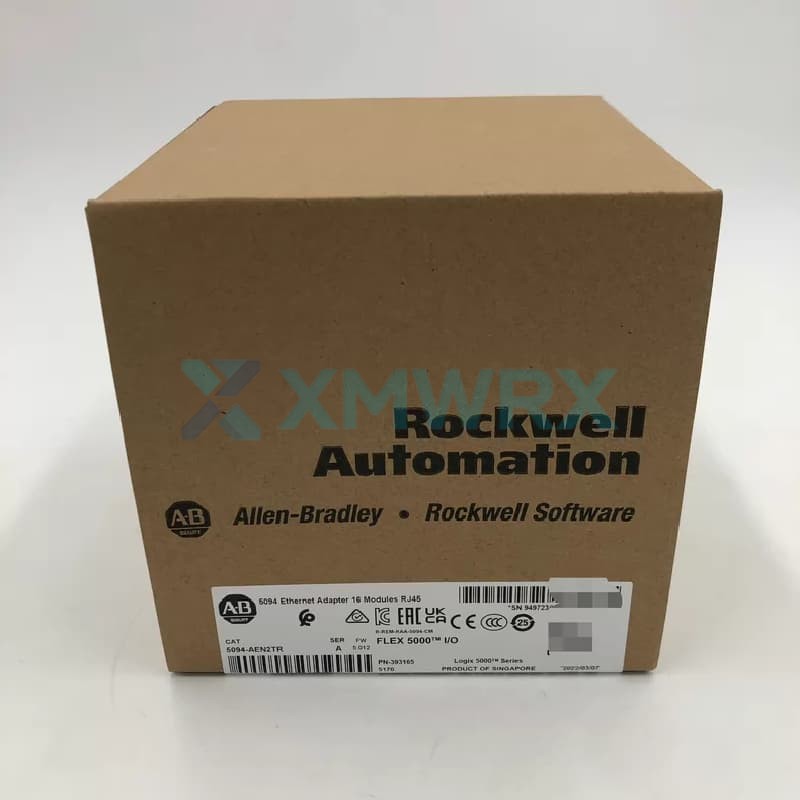

The 5094-AEN2TR is a dual-port EtherNet/IP adapter module from Allen-Bradley's FLEX 5000 series at Rockwell Automation.
It serves as a high-speed communication bridge between the FLEX 5000 I/O system and the Logix 5000 controller, supporting expansion to up to 16 I/O modules. This adapter supports various network topologies, including Device-Level Ring (DLR), star, linear, and Parallel Redundancy Protocol (PRP), and can operate stably in extreme temperatures ranging from -40°C to 70°C.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ High-speed communication: Provides 1 Gbps EtherNet/IP connection to ensure high-speed transmission of industrial field data.
- ✓ High scalability: supports connecting up to 16 FLEX 5000 I/O modules to form a distributed I/O site.
- ✓ Flexible topology: Supports various network topologies such as DLR (Device Level Ring), star, linear and PRP (Parallel Redundancy Protocol) to enhance system networking capabilities.
- ✓ Rugged: supports insertion and removal under power (RIUP), wide operating temperature range of -40…70 °C, and is suitable for hazardous environments.
Technical Specifications
| Brand |
Allen Bradley
|
| Model / Part Number |
5094-AEN2TR |
| Product Series |
FLEX 5000 |
| Product Type |
EtherNet/IP Adapter Module |
| Communication Ports |
2 RJ45 ports |
| Communication Rate |
1 Gbps |
| Maximum I/O Modules |
16
|
| Power Requirements |
18…32V DC |
| Operating Temperature |
-40…70 °C |
| Dimensions (H x W x D) |
Approx. 94 x 92.7 x 96.5 mm |
Frequently Asked Questions
Q: How many I/O modules can the 5094-AEN2TR adapter support?
A: It can support up to 16 FLEX 5000 I/O modules, which is one of the main differences between it and the 5094-AENTR model, which supports 8 modules.
Q: What network topologies does this module support?
A: It supports a variety of flexible topologies, including Device-Level Ring (DLR), star, linear, and Parallel Redundancy Protocol (PRP), making it particularly suitable for redundant network architectures requiring high reliability.
Q: Can the 5094-AEN2TR replace my old adapter?
A: That depends on your old adapter. This module belongs to the FLEX 5000 I/O platform and is incompatible with earlier FLEX platforms. Before replacing it, you must confirm that your backplane and I/O modules are both from the FLEX 5000 series, as different series have different mechanical structures and bus interface standards.
