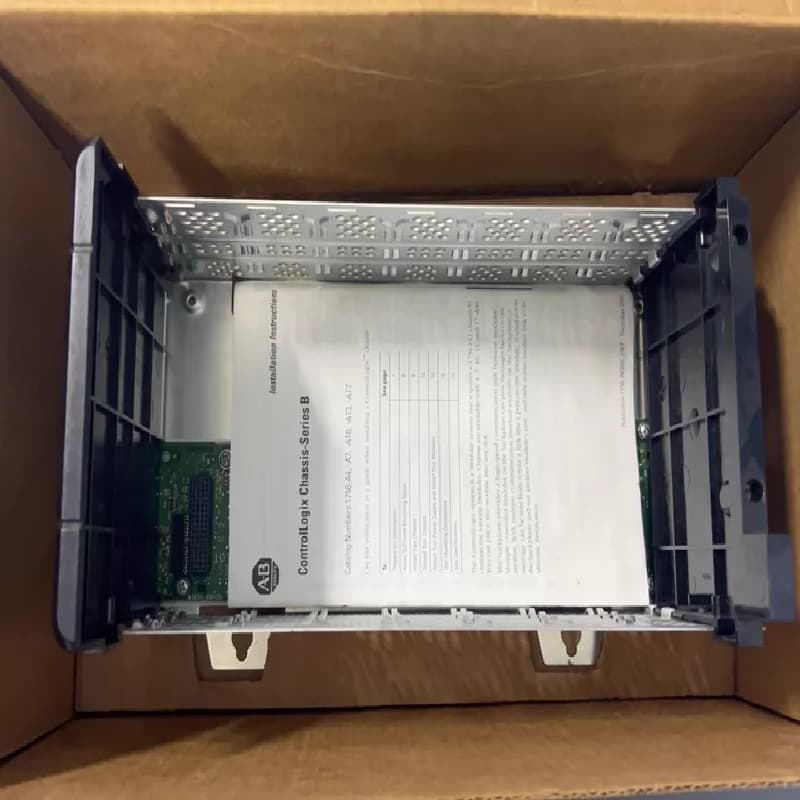

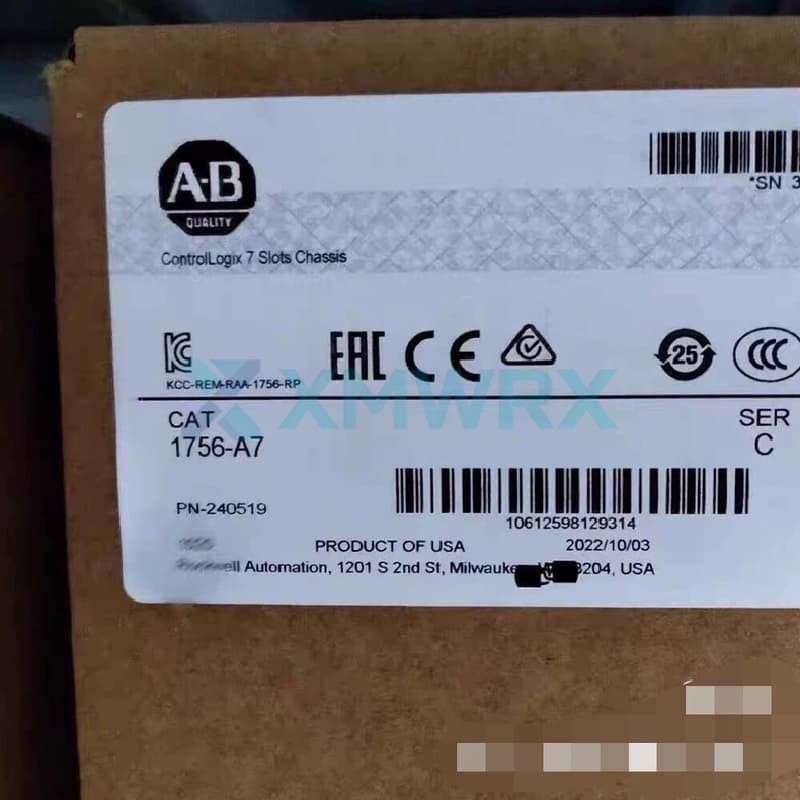

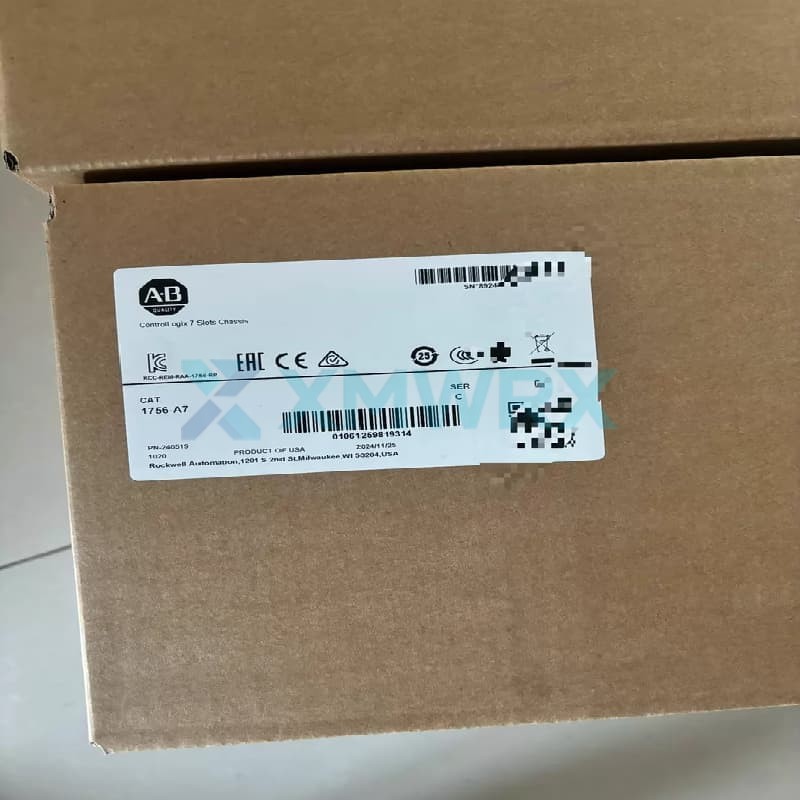

The 1756-A7 is a 7-slot chassis from the Allen-Bradley ControlLogix series of Rockwell Automation, and is a fundamental component for building ControlLogix control systems.
It houses power modules, CPU processors, and various I/O modules, and provides a backplane communication bus for connecting these modules. As a compact chassis model within the ControlLogix platform, the 1756-A7 is primarily targeted at small to medium-sized automation control systems.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ Module Installation and Expansion: Provides 7 slots for flexible installation of ControlLogix series power supplies, CPUs, I/O modules, and communication modules.
- ✓ Backplane Communication: Built-in backplane bus enables high-speed data communication between modules within the chassis.
- ✓ Multi-domain Control Integration: Supports integration of various control functions such as logic control, motion control, and process control on a single platform.
- ✓ Unified Programming Environment: Compatible with Studio 5000 programming software, enabling unified programming and data sharing across devices.
Technical Specifications
| Brand |
Allen Bradley
|
| Model / Part Number |
1756-A7 |
| Series |
ControlLogix |
| Number of Slots |
7 |
| Dimensions (HxWxD) |
Approx. 20.3 x 20.3 x 50.8 cm (8 x 8 x 20 inches) |
| Weight |
Approx. 4.54 kg (10 lbs) |
| Mounting Method |
Front Panel/Subpanel Direct Mount (4 mounting clips included) |
| Operating Temperature |
0 to 60 °C (32 to 140 °F) |
| Relative Humidity |
5% to 95%, Non-condensing |
Frequently Asked Questions
Q: What modules can be installed on the 1756-A7?
A: It can install ControlLogix series standard power modules, CPU processor modules, digital I/O modules, analog I/O modules, motion control modules, and various communication modules (such as EtherNet/IP, ControlNet, etc.).
Q: What size control system is the 1756-A7 suitable for?
A: Suitable for small to medium-sized automation control systems. The 7-slot configuration meets certain expansion needs while maintaining a compact size, commonly used in production line station control, equipment-level automation, and other scenarios.
Q: Which power modules are compatible with the 1756-A7?
A: The 1756-A7 chassis is compatible with a variety of ControlLogix series power modules, including standard and slim power supplies. The power modules are installed in the dedicated slot on the far left of the chassis.
