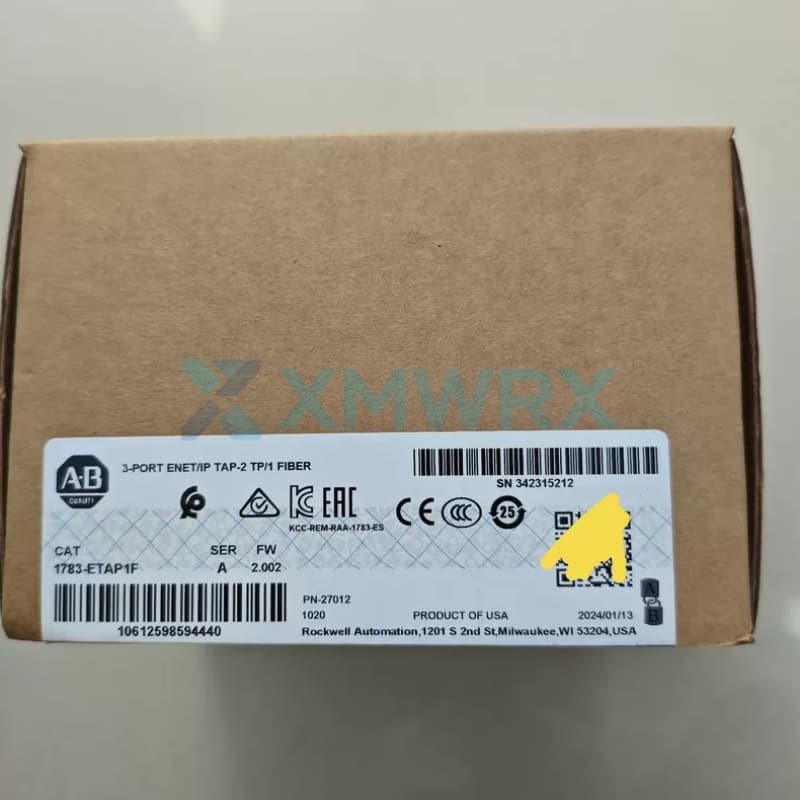

The 1783-ETAP1F is a Stratix embedded Ethernet/IP tap module from the Allen-Bradley brand, a Rockwell Automation subsidiary.
It features two copper (RJ45) ports and one fiber optic (LC) port for non-intrusive network traffic monitoring in industrial networks. This module can be used as an unmanaged switch or media converter and can
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ Non-interference Network Monitoring: As a Tap device, it can replicate network traffic for monitoring equipment analysis without interrupting main network data communication.
- ✓ Optoelectronic Media Conversion: Supports signal conversion between copper and fiber optic cables, suitable for scenarios requiring extended communication distances or electromagnetic interference resistance.
- ✓ DLR Network Support: Supports Device-Level Ring (DLR) topologies, acting as a node in a ring network to achieve network redundancy and high availability.
- ✓ Plug-and-Play Unmanaged Switch: When not configured as a DLR management node, it is essentially a three-port unmanaged switch, allowing for device connection without complex configuration.
Technical Specifications
| Brand |
Allen Bradley
|
| Model / Part Number |
1783-ETAP1F |
| Port Configuration |
2 copper ports (RJ45), 1 fiber optic port (LC) |
| Fiber Type |
Multimode, 100Mbps |
| Power Supply |
24V DC, 200mA |
| Power Consumption |
4.8 watts |
| Protection Rating |
IP67 |
| Mounting Method |
DIN rail mounting |
| Dimensions (HxWxD) |
35.05 x 131.57 x 104.9 mm |
Frequently Asked Questions
Q: Can the 1783-ETAP1F be used as a fiber optic media converter in a DLR (Device-Level Ring) network?
A: Yes. According to Rockwell Automation's technical specifications, as long as it is not configured as a supervisor node in the DLR ring network, it can function as a three-port unmanaged switch, performing copper-to-fiber or fiber-to-copper media conversion in a DLR network.
Q: Will using the 1783-ETAP1F for network monitoring interrupt existing communication?
A: No. The core design of this device is a tap that replicates network traffic through the port without interfering with or blocking communication on the original data path, thus enabling secure, non-intrusive monitoring.
Q: What types of connectors is the 1783-ETAP1F compatible with?
A: It is compatible with two connector types: RJ45 connectors for copper connections and LC connectors for fiber optic connections.
