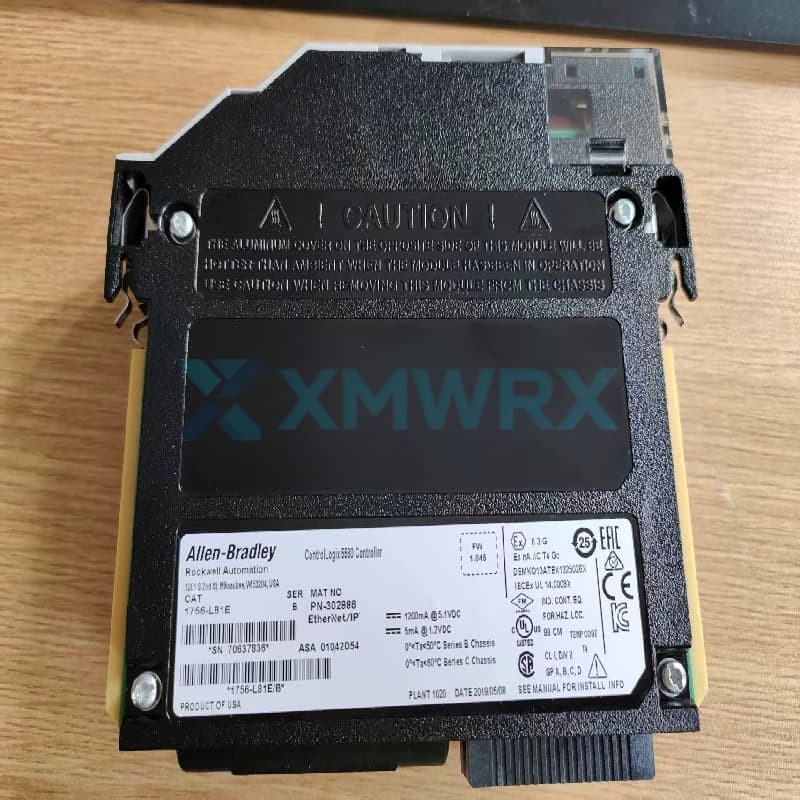

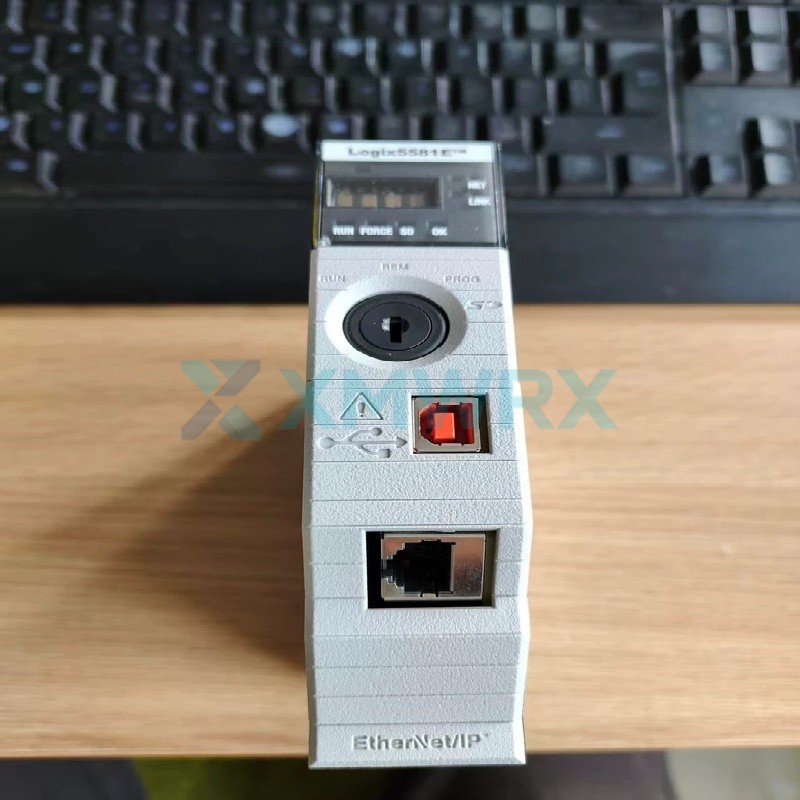

The 1756-L81E is a programmable automation controller (PAC) in Rockwell Automation's Allen-Bradley ControlLogix 5580 series.
As the central processing unit (CPU) of the ControlLogix system, it is responsible for executing user programs, processing I/O signals, and coordinating system communication. This controller is the entry-level model in the L8 series, providing a high-performance solution for mid-range control applications requiring modern connectivity.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Core Features
- ✓ Powerful Processing Capabilities: Equipped with an approximately 1.5 GHz processor, providing high-speed program execution and data processing capabilities.
- ✓ Integrated High-Speed Communication: Includes one Gigabit Ethernet port and one USB 2.0 port, supporting up to 60-100 EtherNet/IP nodes.
- ✓ Large-Capacity I/O Support: Supports up to 128,000 digital I/O points and 4,000 analog I/O points, meeting the needs of large-scale systems.
- ✓ High-Reliability Design: Supports redundant controller configurations and employs a battery-free, environmentally friendly energy storage solution, improving system availability.
Technical Specifications
| Brand |
Allen Bradley
|
| Model / Part Number |
1756-L81E |
| User Memory |
3 MB |
| Dimensions (H x W x D) |
Approx. 5.46 x 18.29 x 23.75 cm |
| Processor Speed |
Approx. 1.2 - 1.5 GHz |
| Communication Ports |
1 Gigabit Ethernet port, 1 USB 2.0 port |
| Maximum I/O |
128,000 digital / 4,000 analog |
| EtherNet/IP Nodes |
60 - 100 |
| Tasks/Programs |
32 tasks / up to 1000 programs per task |
| Power Consumption |
6.2 W |
| Thermal Dissipation |
21.2 BTU/hour |
| Current Consumption |
1.20 A @ 5.1V DC; 5.0 mA @ 1.2V DC |
| Operating Temperature |
0°C to +60°C |
Frequently Asked Questions
Q: What are the main differences between the 1756-L81E and higher models (such as the 1756-L84E)? How should I choose?
A: The core difference lies in the user memory size. The 1756-L81E has 3MB of user memory and is the entry-level model in the L8 series; while the 1756-L84E has 20MB of user memory, suitable for larger and more complex programs. If your control logic, data processing volume, and number of tags are relatively small, choosing the L81E is more cost-effective; conversely, for large, data-intensive applications, you should choose the model with more memory.
Q: Does the 1756-L81E support system redundancy (hot standby) configuration to ensure high system availability?
A: Yes. This controller can be configured as a redundant system, and a seamless switchover between primary and backup controllers can be achieved by using redundancy kits (such as the 1756-PA75R power supply). This is crucial for industries highly sensitive to downtime, such as petrochemicals and continuous production, ensuring that in the event of a main controller failure, the backup controller can take over control within 100ms, guaranteeing uninterrupted production.
Q: In which racks can the 1756-L81E be installed? Is it compatible with my existing ControlLogix racks?
A: Excellent compatibility. This controller requires only one slot and can be installed in all standard ControlLogix 1756 series racks. This includes the 1756-A17 you mentioned earlier, as well as racks for models such as 1756-A4, A7, A10, and A13. It can work in conjunction with other I/O and communication modules within the rack, exchanging data via a high-speed backplane bus.
